¤·····Subject: Mars 29 June 2018 2200 RGB and IR

Received: 30 June 2018 at 16:51 JST

Hi all,

Mars midnight session last night, with what is meant to be Syrtis Major central, and Hellas basin upper central.

The IR definitely seems to cut through the dust, at least to some extent.

The SPC is heavily affected by the dust, and there is some finer dust detail on the bright section of the cap.

Best regards, Clyde

Clyde FOSTER (Centurion, SOUTH AFRICA)

¤·····Subject: Mars 28th June 2018

Received: 30 June 2018 at 14:55 JST

Hello
Please find attached a set of Mars images from the 28th June UT

Seeing was average for these images.

Dust still persists! Looks to be more-so at southern latitudes..

Best wishes

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180628/MVl28June18.png

Maurice VALIMBERTI (Melbourne, AUSTRALIA)

¤·····Subject: Mars June 29

Received: 30 June 2018 at 07:49 JST

Hi All,
Warm and windy morning blowing the telescope around so only an IR and Blue image was done.

Not much of a change on Mars from yesterday.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180629/TWl29June18.png

Tim WILSON (Jefferson City, MO)

¤·····Subject: Mars images, June 29 2018

Received: 30 June 2018 at 02:46 JST

Hi all,
Here is the dusty Mars from this morning. Still very active dust clouds at these longitudes.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180629/CPl29June18.png

Christophe PELLIER (Nantes, FRANCE)

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180629/PGc29June18.png

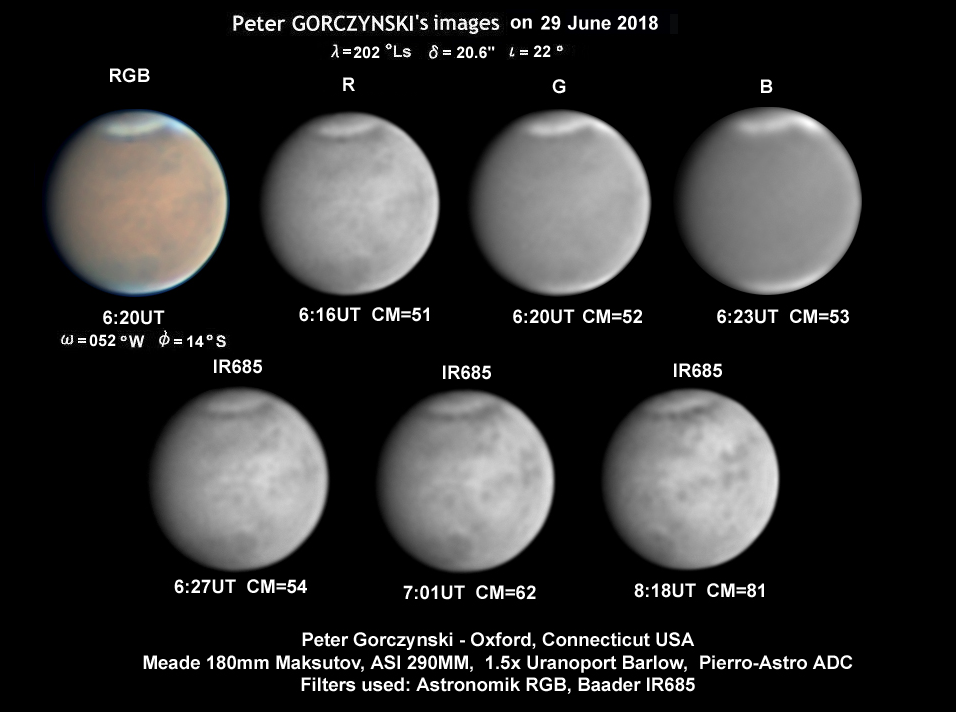

¤·····Subject: Mars images - June 29

Received: 30 June 2018 at 01:02 JST

Gentlemen,

Here are some images from last night, Seeing was average, at best.

Ground fog was coming and going.

Regards,

Peter GORCZYNSKI (Oxford, CT)

¤·····Subject: Mars - June 26th, 27th

Received: 29 June 2018 at 23:38 JST

Hi to All!,

Here I submit my most recent sessions from the 26th and 27th of june.

Under dense Saharra dust aerosols.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180627/EMr27June18.png

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180626/EMr26June18.png

Efrain MORALES RIVERA (Aguadilla, Puerto Rico)

¤·····Subject: Mars 29 June 2018 0326 RGB and IR

Received: 29 June 2018 at 15:29 JST

Hi all,

Mars image set from this morning, CM 10, so Sinus Meridiani and Margaritifer still heavily obscured.

Better seeing is projected by Meteoblue in coming days, but we shall see.

Best regards, Clyde

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180629/CFs29June18.png

Clyde FOSTER (Centurion, SOUTH AFRICA)

¤·····Subject: Mars June 28

Received: 29 June 2018 at 07:14 JST

Hi All,
Had to hurry today thunderstorms were close by and the clouds were moving in. So I only got an IR image and a blue light image. The planet is not recognizable anymore and hasn't been for the last few weeks. Some bright South Polar clouds show in blue light. Used an 8 inch (203mm) SCT this morning.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180625/TWl25June18.png

Tim WILSON (Jefferson City, MO)

¤·····Subject: Mars 2018.06.27 and dust storm

Received: 29 June 2018 at 03:38 JST

Dears,

Under better conditions than the night before, still with clouds on the northern polar area, and on the limb south, and more interesting with the dust storm which arrived on South polar area, partially covering it.

IR: http://astrosurf.com/delcroix/images/planches/m2018-06-27_02-02-42_ir685_md.png

RGB: http://astrosurf.com/delcroix/images/planches/m2018-06-27_02-19-00_rgb_md.png

Steady skies,

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180627/MDc27June18.png

Marc DELCROIX (Tournefeuille, FRANCE)

RGB :http://astrosurf.com/delcroix/images/planches/m2018-06-26_02-06-06_rgb_md.png

¤·····Subject: Mars 2018.06.26

Received: 29 June 2018 at 03:14 JST

Dears,

Under average conditions, we can see again clouds on Northern polar area, and close to the Southern polar area on the limb. South polar Cap show some details.

In infrared:http://astrosurf.com/delcroix/images/planches/m2018-06-26_01-54-24_ir685_md.png

Steady skies

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180626/MDc26June18.png

Marc DELCROIX (Tournefeuille, FRANCE)

http://www.damianpeach.com/mars2018/m2018_06_26dp.jpg

¤·····Subject: Mars images (June 26th.)

Received: 29 June 2018 at 03:11 JST

Hi all,

Some images from June 26th. Poor seeing. The planet is unrecognisable. I include inset a view of how it should look!

Best Wishes

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180626/DPc26June18.png

Damian PEACH (Selsey, WS, the UK)

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180628/CFs28June18.png

¤·····Subject: Mars 28 June 2018 0335 RGB and IR

Received: 28 June 2018 at 16:24 JST

Hi all,

Image set from this morning, with conditions a bit improved.

Quite a lot of subtle features are visible in the IR image, and to a lesser extent in the R, possibly indicating structure in the dust.

S Meridiani and Margaritifer are still heavily obscured.

Vallis Marineris can just be made out through the dust

There appears to be dust on the SPC.

I have increased the size of my template to accommodate the upcoming opposition- things could have been looking very different, but it has been fascinating monitoring the dust storm.

Best regards, Clyde

Clyde FOSTER (Centurion, SOUTH AFRICA)

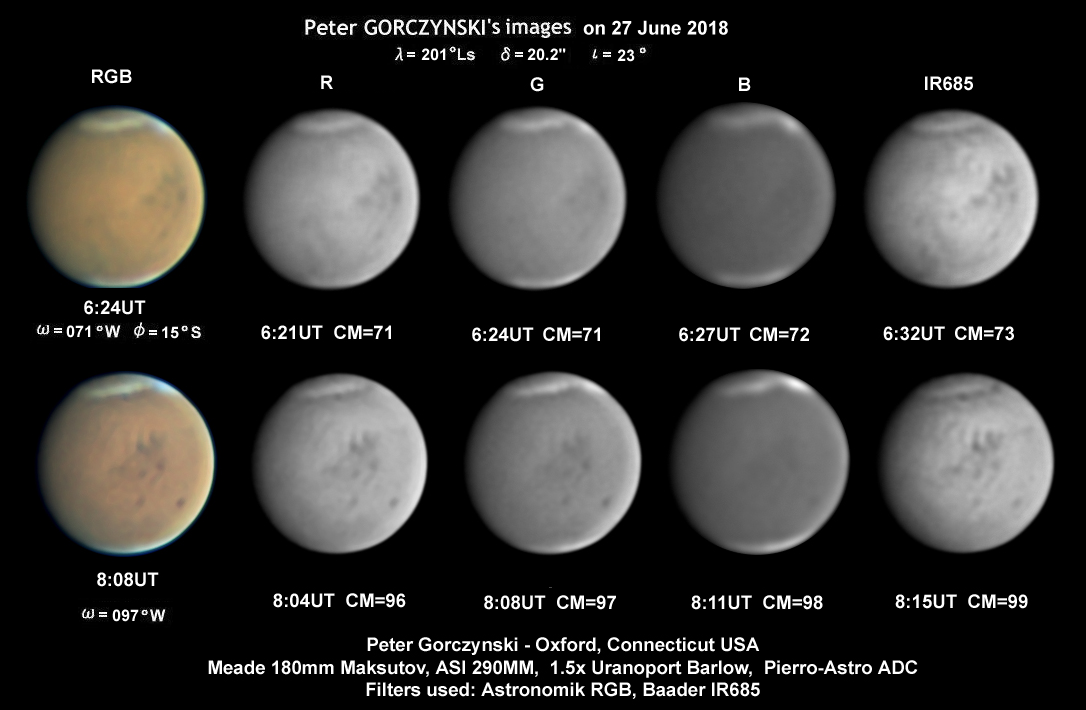

¤·····Subject: Mars images - June 27

Received: 28 June 2018 at 11:58 JST

Gentlemen,

I am submitting images from June 27. Seeing was good, but the sky transparency was poor.

Regards,

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180627/PGc27June18.png

Peter GORCZYNSKI (Oxford, CT)

¤·····Subject: Re: Mars 26 June 2018 0359 RGB and IR

Received: 28 June 2018 at 03:29 JST

Hi Clyde,

And poor 'Opportunity'.

Good seeing,

Jim

On ‎Tuesday‎, ‎June‎ ‎26‎, ‎2018‎ ‎06‎:‎12‎:‎16‎ ‎AM, Clyde Foster <clyde@icon.co.za> wrote:

Hi, all

Image set from this morning. Poor conditions.

This face of Mars is almost unrecognisable with very little detail visible.

Best regards, Clyde

Jim MELKA (Chesterfield, MO)

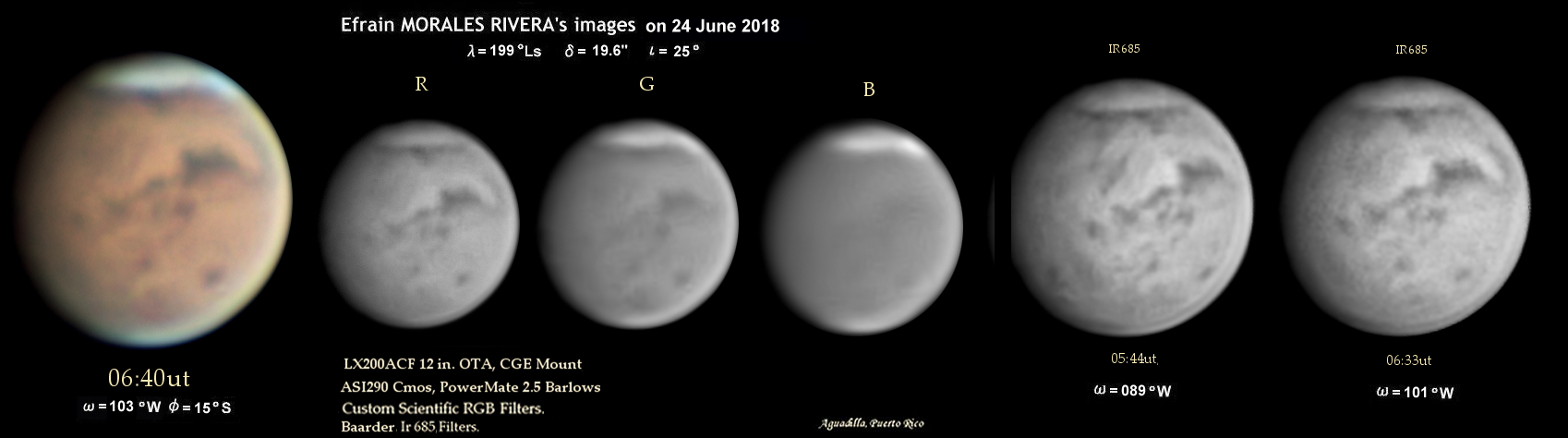

¤·····Subject: Mars (re-submit)

Received: 28 June 2018 at 02:42 JST

Hi To All!,

This is my third attempt to submit my images and they are not being posted?.

If there is any changes please let me know.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180624/EMr24June18.png

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180621/EMr21June18.png

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180618/EMr18June18.png

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180617/EMr17June18.png

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180616/EMr16June18.png

Efrain MORALES RIVERA (Aguadilla, Puerto Rico)

¤·····Subject: Mars images on 24 June

Received: 27 June 2018 at 22:29 JST

Mars images on 24 June 2018.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180624/Ak24June18.png

Tomio AKUSTU (Ibaraki, JAPAN)

¤·····Subject: RE: Mars 25 June 2018 2212 RGB and IR

Received: 27 June 2018 at 21:14 JST

Yes, that must be dust across the cap on June 22.

At 6/27/2018 01:50 AM, Clyde Foster wrote:
>Hi, Roger, all
>Regarding your comment about linear dust across the SPC, I am wondering if
>there wasn't something similar on 22 June? I have circulated it previously,
>but attach it for convenience. The SPC showed as quite complex, but from
>what I have seen, it has been heavily affected by the dust storm.
>Regards, Clyde

Roger VENABLE ( Chester, GA )

¤·····Subject: Re: Mars images 26th June 2018

Received: 27 June 2018 at 21:04 JST

Yes –

It's remarkable for having begun in the Northern Hemisphere, remarkable also for having begun in early southern spring, and remarkable for the slowness of its development.

Waiting to see whether the SPC will become totally obscured.

Roger VENABLE ( Chester, GA )

¤·····Subject: RE: Mars 25 June 2018 2212 RGB and IR

Received: 27 June 2018 at 11:55 JST

Hi Roger all,
Regarding your comment about linear dust across the SPC, I am wondering if there wasn't something similar on 22 June? I have circulated it previously, but attach it for convenience. The SPC showed as quite complex, but from what I have seen, it has been heavily affected by the dust storm.

Regards, Clyde

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180622/CFs22June18.png

Clyde FOSTER (Centurion, SOUTH AFRICA)

¤·····Subject: Mars: June 26, 2018

Received: 27 June 2018 at 11:55 JST

Hi,

I have attached my latest image of Mars June 26, 2018 at 8:37 UT.

Thanks,

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180626/FMl26June18.png

Frank J MELILLO (Holtsville, NY)

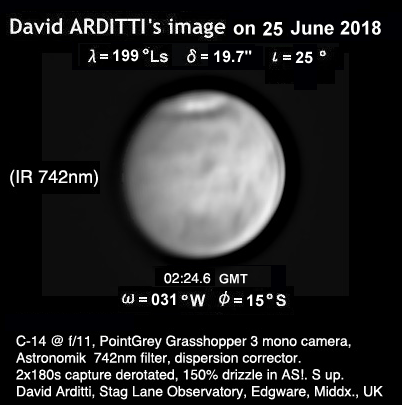

¤·····Subject: Mars 2018 June 24 & 25

Received: 27 June 2018 at 06:28 JST

It looks here like there is a general semi-opque obscuration, but distinct thicker clouds of dust seem to be visible on the terminator.

N and S up images given.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180626/DAr26June18.png

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180625/DAr25June18.png

David ARDITTI (Edgware, Middx., the UK)

¤·····Subject: Saturn and satellites 2018.06.21

Received: 27 June 2018 at 06:22 JST

Dears,

Last planet from three taken during the night from June 20 to 21, Saturn which is fine for 24° elevation, with its satellites:

R610
http://astrosurf.com/delcroix/images/planches/s2018-06-21_01-26-24_r610_md.png
http://astrosurf.com/delcroix/images/planches/s2018-06-21_02-00-36_r610_md.png

RGB:

http://astrosurf.com/delcroix/images/planches/s2018-06-21_01-46-00_rgb_md.png

Next Saturn from last night will show clearly the Seelinger effect :)

Steady skies,

Marc DELCROIX (Tournefeuille, FRANCE)

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180626/SKd26June18.png

¤·····Subject: Mars 26-06-2018

Received: 27 June 2018 at 05:45 JST

Hi All,

Mars earlier today (26-06-2018).

Some familiar shapes visible through all the dust

All the best

Simon KIDD (Cottered,Herts,the UK)

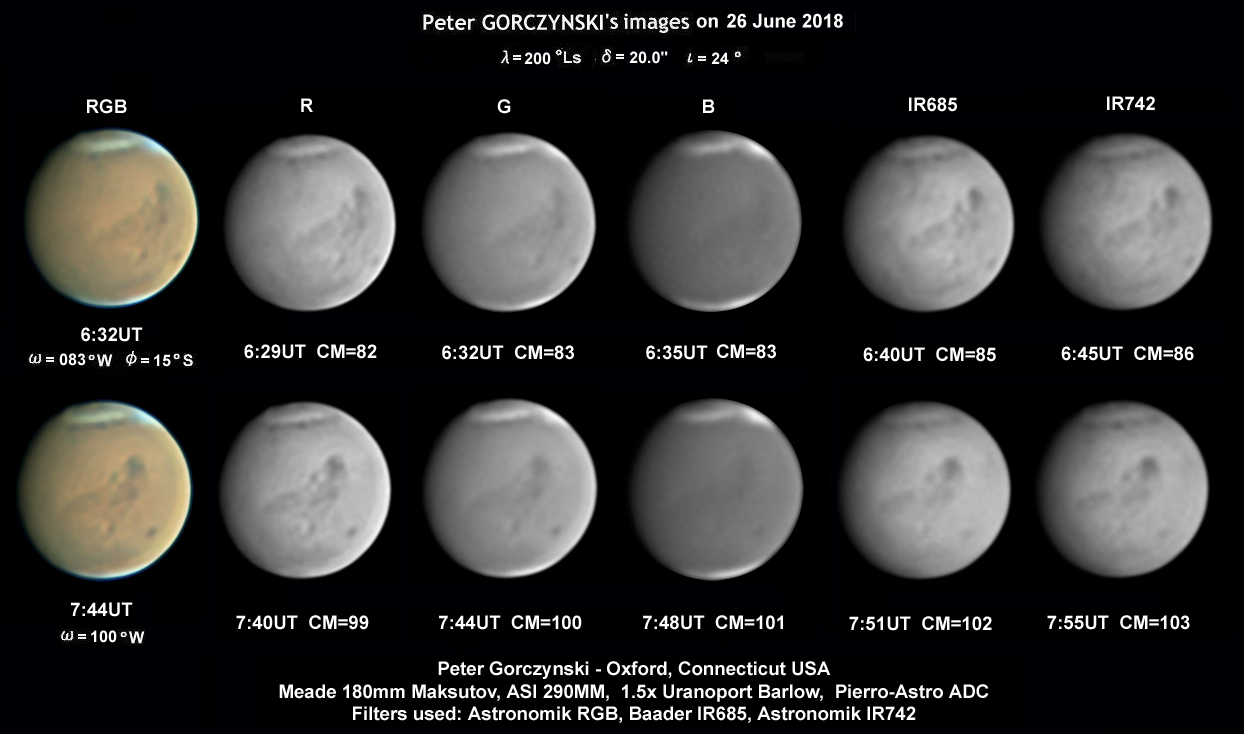

¤·····Subject: Mars images - June 26

Received: 27 June 2018 at 05:32 JST

Gentlemen

Attached are two sets of images from last night. The first set of data is what I believe to be the best seeing of the session. Seeing seemed to deteriorate a little as the night went on, but still remained decent.

Regards,

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180626/PGc26June18.png

Peter GORCZYNSKI (Oxford, CT)

¤·····Subject: Mars images 26th June 2018

Received: 27 June 2018 at 04:56 JST

Hi guys,
Follow-up of the storm from this morning ! I think the storm is only reaching its paroxysm now.

And that it could be even denser et wide than in 2001.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180626/CPl26June18.png

Christophe PELLIER (Nantes, FRANCE)

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180626/CFs26June18.png

¤·····Subject: RE: Mars 25 June 2018 2212 RGB and IR

Received: 27 June 2018 at 02:21 JST

Thanks, Roger. Interesting regarding the linear dust across SPC.
Regards, Clyde

Clyde FOSTER (Centurion, SOUTH AFRICA)

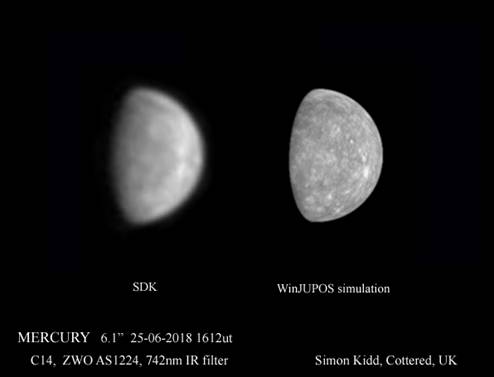

¤·····Subject: Mercury 25-06-2018 742nm IR

Received: 27 June 2018 at 00:34 JST

Hi All,

Mercury yesterday; fluttery, unpredictable conditions, to be expected in this hot weather I suppose!

All the best

Simon KIDD (Cottered,Herts,the UK)

¤·····Subject: Re: Mars 25 June 2018 2212 RGB and IR

Received: 26 June 2018 at 22:58 JST

Lots of false albedo features in the R and the IR images.

Roger VENABLE ( Chester, GA )

¤·····Subject: Re: Mars 25 June 2018 2212 RGB and IR

Received: 26 June 2018 at 22:58 JST

Yeah! There's always something interesting going on when a big dust storm is present, changing from day to day. Linear dust across the NPC has been imaged before but this is the first time (if I recall correctly) that I've seen such a feature cross the SPC.

Great images, Clyde.

Roger VENABLE ( Chester, GA )

¤·····Subject: Mars 26 June 2018 0359 RGB and IR

Received: 26 June 2018 at 20:11 JST

Hi all,

Image set from this morning. Poor conditions.

This face of Mars is almost unrecognisable with very little detail visible.

Best regards, Clyde

Clyde FOSTER (Centurion, SOUTH AFRICA)

¤·····Subject: Mars 18th June 2018 IR

Received: 26 June 2018 at 19:49 JST

Hello all,

Attached are some image of Mars taken on the 18th June with an IR filter.Seeing was average.

Best wishes

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180618/MVl18June18.png

PS apologies for my previous email which referred to Saturn's polar storm as being in the SPR... should have been NPR...

Maurice VALIMBERTI (Melbourne, AUSTRALIA)

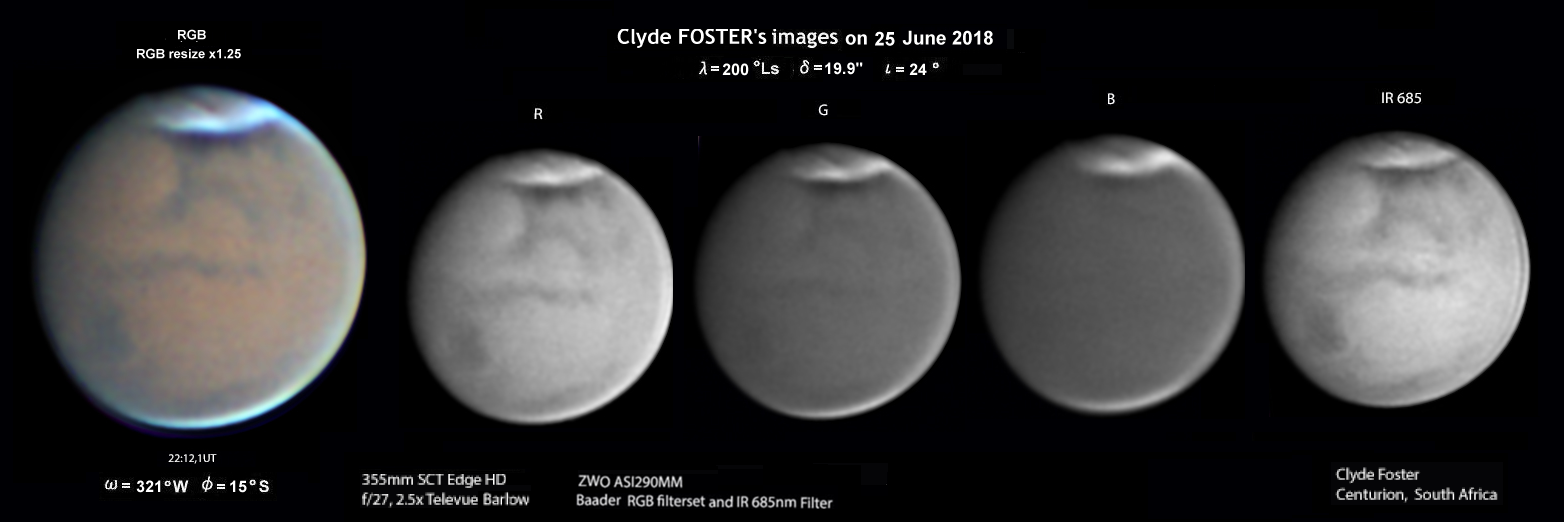

¤·····Subject: Mars 25 June 2018 2212 RGB and IR

Received: 26 June 2018 at 18:08 JST

Hi All,

Mars last night under ongoing average/below average seeing conditions.

Syrtis Major at lower left and Hellas at upper left.

Portions of Sinus Sabeus can be seen, although Sinus Meridiani appears to be totally obscured.

What is a bit intriguing is the obvious linear feature running across the SPC, visible at all wavelengths.

Best regards, Clyde

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180625/CFs25June18.png

Clyde FOSTER (Centurion, SOUTH AFRICA)

¤·····Subject: Mars 24 June 2018 0215 RGB and IR

Received: 26 June 2018 at 16:52 JST

Hi all,

IR was the best data on 24 June and RGB data was rather poor, but submitting for the record.

A very bland looking Mars

Best regards, Clyde

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180624/CFs24June18.png

Clyde FOSTER (Centurion, SOUTH AFRICA)

¤·····Subject: Mars M180625 ishibashi

Received: 26 June 2018 at 16:18 JST

Mars image on 25 June 2018.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180625/Is25June18.png

Tsutomu ISHIBASHI (Kanagawa, JAPAN)

¤·····Subject: Mars 2018 25 June RGB Image corrected

Received: 26 June 2018 at 10:43 JST

Previously sent file was accidently inverted. This one should have correct orientation.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180625/GWk25June18.png

Gary WALKER (Macon, GA)

¤·····Subject: Jupiter 2018 June 21, 22, 24, 25

Received: 26 June 2018 at 09:59 JST

It’s been possible to image Jupiter almost every evening recently (and Mars in the mornings).

David

David ARDITTI (Edgware, Middx., the UK)

¤·····Subject: Jupiter images June 20th 2018

Received: 26 June 2018 at 08:57 JST

Again good post-sunset seeing for these.

Note interesting different colours depicted in Ultraviolet : yellowish EZ (very dark) and off-white STrZ (very bright)

Regards

Christophe PELLIER (Nantes, FRANCE)

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180618/MJs18June18.png

¤·····Subject: Mars images

Received: 26 June 2018 at 08:21 JST

Dear Sirs,
Please find attached a Mars image set from the 18th June 2018.
Best regards,

Mark JUSTICE (Melbourne, AUSTRALIA)

¤·····Subject: Mars RGB image 25 June 2018

Received: 26 June 2018 at 07:39 JST

Taken thru passing clouds but above average seeing for altitude. Dust obscures part of Mare Sirenum and SPC, and Solis area is obscured. Tharsis volcanoes visible.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180625/GWk25June18.png

Gary WALKER (Macon, GA)

¤·····Subject: Mars June 25

Received: 26 June 2018 at 07:05 JST

Hi All,
Seeing was not good today. In addition, I had some fog and high thin cirrus from approaching thunderstorm complex. Mare Sirenum's dust core was still evident today.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180625/TWl25June18.png

Tim WILSON (Jefferson City, MO)

¤·····Subject: Mars images (June 18th.)

Received: 26 June 2018 at 04:49 JST

Hi all,

Here is an image from June 18th. Poor to fair seeing. Lucky to have gotten these images on these days before the dust became really bad over this hemisphere.

http://www.damianpeach.com/mars2018/m2018_06_18dp.jpg

Best Wishes

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180618/DPc18June18.png

Damian PEACH (Selsey, WS, the UK)

¤·····Subject: Mars images, June 25th 2018

Received: 26 June 2018 at 04:29 JST

Hi all,
Dusty Mars images from this morning. Activity is very high now on this hemisphere.

Good seeing through hazy sky.

Regards,
http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180625/CPl25June18.png

Christophe PELLIER (Nantes, FRANCE)

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180620/JBd20June18.png

¤·····Subject: Mars images June 20 2018

Received: 25 June 2018 at 21:29 JST

Mid point of RGB capture at: 2018 June 20 @ 07:31:40 UT

Mid point of IR capture at: 2018 June 20 @ 07:27:19

Regards,

John BOUDREAU (Saugus, MA)

¤·····Subject: Mars image from 6/24/2018 UT

Received: 25 June 2018 at 17:43 JST

Dear CMO,
Here is a Mars image from 6/24/2018.
Observation notes are in the image itself. Will send more images from this session later this week.
best regards,
http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180624/RHf24June18.png

Robert HEFFNER (Osaka, JAPAN)

¤·····Subject: Mars 2018/06/24-Kumamori

Received: 25 June 2018 at 17:22 JST

Mars images on 24 June 2018.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180624/Km24June18.png

Teruaki KUMAMORI (Osaka, JAPAN)

¤·····Subject: Mars 22nd June 2018

Received: 25 June 2018 at 15:48 JST

Hello all
I have recently decommissioned my RC14 for some work to be done on the secondary mirror.
In its place I have started using a 30cm Newtonian reflector, and will probably use this instrument for the remainder of the Mars apparition.
I am still waiting for a different barlow to arrive in order to increase image scale a little.
Please find attached an image set of Mars taken in good seeing conditions on the 22nd June as marked.
I will send some more data from the RC14 (taken some days prior) soon.
kind regards

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180622/MVl22June18.png

PS attached is also an image of Saturn taken on the same night with the new set-up showing some SPR activity..

Maurice VALIMBERTI (Melbourne, AUSTRALIA)

¤·····Subject: RE: Mars 9- 23 June 2018 Dust Activity over Solis Lacus region

Received: 25 June 2018 at 15:20 JST

Hi all,

Over the period 9-23 June, I was able to monitor the Vallis Marineris/Solis Lacus region, which corresponded to the western front of the major dust storm that had initiated in Mare Acidalia at the end of May.

The main dust cloud from this storm can be seen blanketing the eastern(left) limb, particularly well seen from 11-15 June, and appearing to become more diffuse in the following days.

Very dynamic changes were seen on a daily basis, with dust activity, which appears to be various extensions of the original dust cloud, active across Solis Lacus over this whole period.

However, multiple, local, concentrated, albeit short lived, dust outbreaks were also see during this period, most notably:

a) Directly over Solis Lacus on 10 and 11 June

b) Very bright outbreak in Memnonia 12 June

c) Two concentrated outbreaks just south-west of Vallis Marineris on 19 June, with a possible further, less concentrated outbreak in Daedalia/Memnonia.

d) What appears to be a major dust outbreak to the south, west and north of Solis Lacus (captured by other imagers on previous days) as seen on 23 June. At this stage the whole region had a very hazy appearance

I have deliberately left off detailed daily information, but can supply/add if required.

Best regards, clyde

Clyde FOSTER (Centurion, SOUTH AFRICA)

¤·····Subject: Mars images

Received: 25 June 2018 at 09:35 JST

Dear Sirs,
Please find attached a Mars image set from the 22nd June 2018.
Best regards,

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180622/MJs22June18.png

Mark JUSTICE (Melbourne, AUSTRALIA)

¤·····Subject: Saturn images (June 18th.)

Received: 25 June 2018 at 07:05 JST

Hi all,

Here is an image from June 18th.

Some moments of decent seeing at times. A bright storm area is visible in the equatorial zone at centre. Also a bright region in the band surrounding the polar region.

http://www.damianpeach.com/sat18/s2018-06-18-0516_7-RGBdp.jpg

Best Wishes

Damian PEACH (Selsey, WS, the UK)

¤·····Subject: Jupiter images June 19th 2018

Received: 25 June 2018 at 04:07 JST

Hi all,
Jupiter can now be observed at dawn when the seeing can be excellent. View of the GRS was superb that evening.

Best regards,
Christophe

Christophe PELLIER (Nantes, FRANCE)

¤·····Subject: Jupiter images, June 12th 2018

Received: 25 June 2018 at 04:01 JST

Hi all,
Please find attached Jupiter images taken under good seeing.

Regards,
Christophe

Christophe PELLIER (Nantes, FRANCE)

¤·····Subject: Re: Saturn images, 21 June 2018 CORRECTION

Received: 25 June 2018 at 03:58 JST

Hi all,

Much sorry for the new sending but the images have taken on June 20th, NOT the 21th. Attached are corrected images.

Le 24/06/2018 à 11:02, Christophe Pellier a écrit :

Hi all,
Here are three IR images (with one CH4) of Saturn.

Regard,

Christophe PELLIER (Nantes, FRANCE)

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180624/DAr24June18.png

¤·····Subject: Mars 2018 June24

Received: 25 June 2018 at 02:46 JST

Not so clear this night, hazy, though seeing was fair. So I’m not quite sure if this rather diffuse-looking disk, with much less albedo contrast than on the 22nd, is really the state of Mars at the moment, or if it is due to my conditions. Solis Lacus and Mare Erythraem are hardly visible.

David ARDITTI (Edgware, Middx., the UK)

¤·····Subject: Mars June 24

Received: 25 June 2018 at 02:36 JST

Hi,

Seeing this morning was terrible. Wasn't going to post anything but there appears to be a thicker band of dust in Mare Sirenum showing up in the IR image and in the color at times on the monitor.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180624/TWl24June18.png

Tim WILSON (Jefferson City, MO)

¤·····Subject: Jupiter, Io and Europe 2018.06.20

Received: 24 June 2018 at 23:09 JST

Dears,

Jupiter under a correct seeing.
"STB Ghost" is setting (on the right, it appears as a very dark streak including in methane absorption band) with white oval A5 south of it, and "STB spectre" very faint is getting closer to the central meridian.
A small brown barge is close to the CM, South of the SEB, and a dark spot chain is visible in NTB.
Io is almost stationary, far from Jupiter while Europa closer moves faster.

An animation in infrared with the individual images:
http://astrosurf.com/delcroix/images/planches/j2018-06-20_21-13-12_ir685anim_md.gif

http://astrosurf.com/delcroix/images/planches/j2018-06-20_21-13-12_ir685_md.png
http://astrosurf.com/delcroix/images/planches/j2018-06-20_21-38-12_ir685_md.png
http://astrosurf.com/delcroix/images/planches/j2018-06-20_22-03-00_ir685_md.png

RGBs:

http://astrosurf.com/delcroix/images/planches/j2018-06-20_21-26-54_rgb_md.png
http://astrosurf.com/delcroix/images/planches/j2018-06-20_22-14-30_rgb_md.png

In CH4 absorption band:
http://astrosurf.com/delcroix/images/planches/j2018-06-20_21-51-36_ch4_md.png
http://astrosurf.com/delcroix/images/planches/j2018-06-20_22-26-24_ch4_md.png

Steady skies,

PS: If you prefer to receive images as attachments, or do not want to receive those messages, please let me know.

Marc DELCROIX (Tournefeuille, FRANCE)

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180622/MDc22June18.png

¤·····Subject: Mars and dust storm on 2018.06.23

Received: 24 June 2018 at 19:40 JST

Dears,
Under less favorable conditions than 2 days earlier, images showing in lower resolution that the dust storm on Solis Lacus continued to spread (bright zone in the Southern hemisphere, close to the limb on the left). Infrared image shows some details nonetheless, and a bluish cloud is visible on the limb close to South pole.

RGB: http://astrosurf.com/delcroix/images/planches/m2018-06-23_02-21-12_rgb_md.png
IR: http://astrosurf.com/delcroix/images/planches/m2018-06-23_01-58-06_ir685_md.png
Steady skies,

PS: If you prefer to receive images as attachments, please let me know.

Marc DELCROIX (Tournefeuille, FRANCE)

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180622/PGc22June18.png

¤·····Subject: Mars images - June 20 & 22

Received: 24 June 2018 at 13:46 JST

Gentlemen,

Attached are images from June 20 & 22. Seeing was about average for both nights.

The elevation of Mars at my location is 27 degrees.

Regards,

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180620/PGc20June18.png

Peter GORCZYNSKI (Oxford, CT)

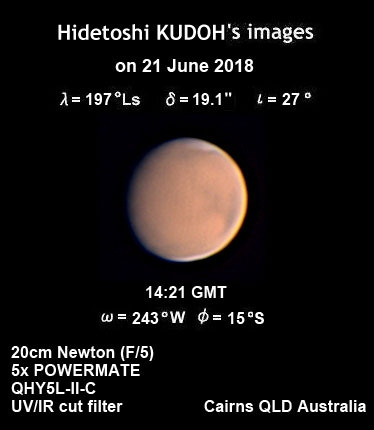

¤·····Subject: Mars on 21 June 2018 from Hidetoshi Kudo

Received: 24 June 2018 at 10:16 JST

Dear Minami-sama,
Please find attached my latest Mars image from 21st June 2018.
The planet is still covered by the storm. I am hoping that the storm settles
down bit more before the closest approach.
Kind regards,

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180621/Kd21June18.png

Hidetoshi KUDOH (Cairns, QLD, AUSTRALIA)

¤·····Subject: Dust ball Mars images (June 17th.)

Received: 24 June 2018 at 05:38 JST

Hi all,

Some moments of good seeing on the 17th, but the planet it mostly shrouded in a dust haze. Even the SPC is largely obscured. Clearer skies over Sinus Gomer for the Spirit rover.

http://www.damianpeach.com/mars2018/m2018_06_17dp.jpg

Best Wishes

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180617/DPc17June18.png

Damian PEACH (Selsey, WS, the UK)

http://www.damianpeach.com/mars2018/m2018_06_23dp.jpg

¤·····Subject: Mars images (June 23rd.)

Received: 24 June 2018 at 00:59 JST

Hi all,

Strong jetstream over Chile this morning meant poor seeing but it was easily good enough to see the massive new dust cloud that has erupted over Solis Lacus/Mare Sirenum.

Olympus Mons is very prominent (the dark spot above centre.)

Best Wishes

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180623/DPc23June18.png

Damian PEACH (Selsey, WS, the UK)

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180622/Ak22June18.png

¤·····Subject: Mars images on 21, 22 June 2018

Received: 23 June 2018 at 22:18 JST

Mars images on 21, 22 June 2018.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180621/Ak21June18.png

Tomio AKUSTU (Ibaraki, JAPAN)

¤·····Subject: Mars images 13/20/22/23 June 2018

Received: 23 June 2018 at 20:32 JST

Hi friends,
After a few days of major mail access and computer problems, I can send you images from the last days or weeks!
Here are my first four set of Mars images for the current apparition, showing the onset and developpment of major dust outbreaks over Solis Lacus, so the storm is really global now and not over at all.

This is probably the second occurrence of such an early spring global storm (at least in human history), with the great 2001 storm. To the difference of this last one however, the start of activity did not begun in usual southern locations (such as Hellas/SPC in 2001) but with a cross-equatorial dust event first lifted over Mare Acidalium on May 31th, wich is quite an interesting fact since usually those storm do not trigger global events.

Best regards,

Christophe

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180623/CPl23June18.png

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180622/CPl22June18.png

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180620/CPl20June18.png

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180613/CPl13June18.png

Christophe PELLIER (Nantes, FRANCE)

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180623/CFs23June18.png

¤·····Subject: Mars 23 June 2018 0242 RGB and IR

Received: 23 June 2018 at 16:25 JST

Hi all,

Mars this morning.

Conditions were not particularly good, but the general impression is that this region is now also being affected quite significantly by dust and contrast appears to be reduced.

Best regards, Clyde

Clyde FOSTER (Centurion, SOUTH AFRICA)

¤·····Subject: Mars 2018 June 22

Received: 23 June 2018 at 13:33 JST

The dust event has expanded since last night.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180622/DAr22June18.png

David ARDITTI (Edgware, Middx., the UK)

¤·····Subject: Mars and dust storm 2018.06.21

Received: 23 June 2018 at 07:26 JST

Dears,

Under a degrading seeing at dusk, my first Mars since 2 years. It's nice to see details on a terrestrial planet. The 3 Tharsis montes are visible left, and Valles Marineris is in the South hemisphere left of the dark zone at meridian. Its East part seems to be covered by a dust storm, bright in infrared, and very detailed, starting to spread south west in Solis Planum, and East towards Argyre Planita. North pole is whitish, and in the South we can see structures in the polar cap.

http://astrosurf.com/planetessaf/mars/images/planches/m2018-06-21_02-51-54_rgb_md.png

http://astrosurf.com/planetessaf/mars/images/planches/m2018-06-21_03-10-18_ir685_md.png

Glad to get such images at only 24° elevation - it was also the end of a planetary night for me, I'm processing Jupiter and Saturn from the beginning of the night.

Steady skies,

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180621/MDc21June18.png

Marc DELCROIX (Tournefeuille, FRANCE)

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180622/CFs22June18.png

¤·····Subject: Mars 22 June 2018 0030 RGB and IR

Received: 22 June 2018 at 16:16 JST

Hi all,

Some nice seeing conditions earlier this morning.

The SPC is showing quite a complex structure.

Dust is still obscuring large portions of this region, particularly to the east(left).

Structure is seen in Vallis Marineris, most notably Capri, and Eos and Ganges Chasmata.

Blue cloud is noted below the SPC at upper right.

Best regards, Clyde

Clyde FOSTER (Centurion, SOUTH AFRICA)

¤·····Subject: Mars M180621 ishibashi

Received: 22 June 2018 at 15:36 JST

Mars images on 21 June 2018.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180621/Is21June18.png

Tsutomu ISHIBASHI (Kanagawa, JAPAN)

¤·····Subject: Mars 2018/06/21-Kumamori

Received: 22 June 2018 at 15:25 JST

Mars images on 21 June 2018.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180621/Km21June18.png

Teruaki KUMAMORI (Osaka, JAPAN)

¤·····Subject: Mars 2018 June 21

Received: 22 June 2018 at 12:44 JST

Quite pleased to capture as much detail on Mars as this in IR at only 17º altitude.

It looks as though dust is licking round both the S and W sides of Solis Lacus.

Versions here for both those who prefer N at top or S.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180621/DAr21June18.png

David ARDITTI (Edgware, Middx., the UK)

¤·····Subject: Saturn images (June 17th.)

Received: 22 June 2018 at 05:36 JST

Hi all,

Average seeing for this image. A good clear view of the polar storm however. It rather reminds me of a small version of the 2011 great storm with its bright source and trailing white material.

http://www.damianpeach.com/sat18/s2018-06-17-0511_7-RGBdp.jpg

Best Wishes

Damian PEACH (Selsey, WS, the UK)

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180619/EMr19June18.png

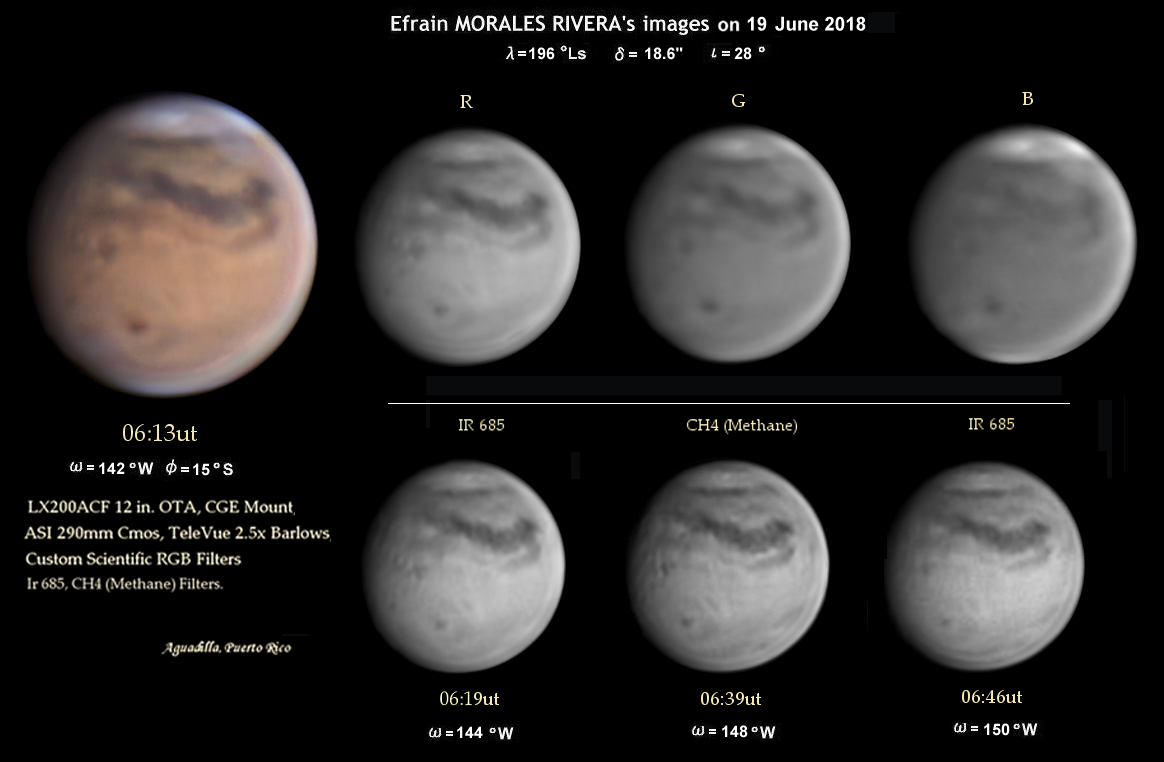

¤·····Subject: Mars - June 19th IR685, CH4

Received: 20 June 2018 at 23:52 JST

Hi Mr. Minami and All!,

Here is one set in IR685 and CH4.

Efrain MORALES RIVERA (Aguadilla, Puerto Rico)

¤·····Subject: Mars - June 19th

Received: 20 June 2018 at 22:40 JST

Hi Mr. Minami and All!,

Here I submit my session from june 19th.

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180619/EMr19June18.png

Efrain MORALES RIVERA (Aguadilla, Puerto Rico)

¤·····Subject: Mars Image

Received: 20 June 2018 at 10:43 JST

Dear Sir,

Please consider my image for publication on the CMO webpage.

I live in Spotsylvania, Virginia, USA.

Respectfully submitted,

Dr. Myron Wasiuta

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180618/MWs18June18.png

Myron WASIUTA (Spotsylvania, VA)

¤·····Subject: Mars 20 June 2018 2112 IR

Received: 21 June 2018 at 15:43 JST

Hi all,

Limited to a single IR capture yesterday evening.

Nice to see the familiar shape of Sinus Sabeaus and Sinus Meridiani starting to reappear through the dust.

Hopefully Opportunity rover will start seeing a bit of sunlight on its solar panels.

Best regards, Clyde

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180620/CFs20nJune18.png

Clyde FOSTER (Centurion, SOUTH AFRICA)

¤·····Subject: Mars: June 20, 2018

Received: 21 June 2018 at 13:06 JST

Hi,

I have attached my latest image of Mars June 20th, 2018 at 9:15 UT.

Thanks,

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180620/FMl20June18.png

Frank J MELILLO (Holtsville, NY)

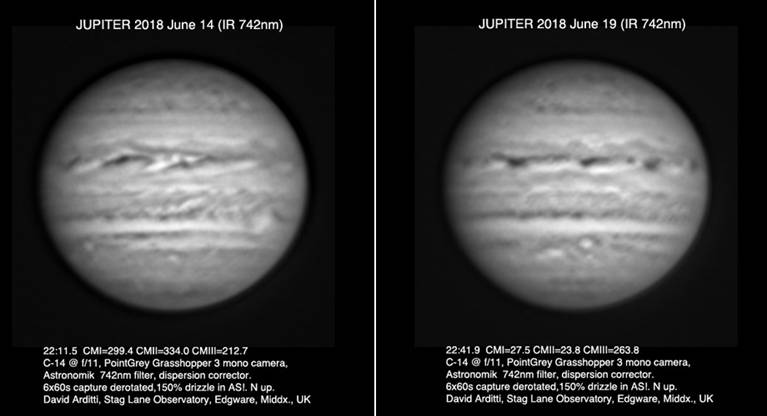

¤·····Subject: Jupiter 2018 June 14 & 19

Received: 21 June 2018 at 09:40 JST

We’re having a better apparition than expected in the London area: a lot of clear evenings with good seeing.

The image from the 14th shows the very turbulent STB following the GRS.

The image from the 19th was taken at only 15º alt. BA is on display.

David ARDITTI (Edgware, Middx., the UK)

¤·····Subject: Mars images (June 16th.)

Received: 21 June 2018 at 05:16 JST

Hi all,

Some moments of good seeing this night. A lovely detailed view of Mare Sirenum. Dust and haze across the SPC. Thick dust obscuration over on the left side of the disk over Mare Tyrrhenum and over Elysium.

http://www.damianpeach.com/mars2018/m2018_06_16dp.jpg

Best Wishes

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180616/DPc16June18.png

Damian PEACH (Selsey, WS, the UK)

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180620/GWk20June18.png

¤·····Subject: Mars 2018_20 June_CM=176 RGB Image

Received: 21 June 2018 at 04:48 JST

Sorry, precise North/South orientation was not calibrated on this image.

Gary WALKER (Macon, GA)

¤·····Subject: Re: Mars 19 June 2018 2057 RGB and IR

Received: 21 June 2018 at 04:34 JST

This could kill Opportunity if its solar panels get covered with dust.

If the large region of dust clouds stops expanding, then the dust will settle out.

Good seeing,

Jim MELKA (Chesterfield, MO)

¤·····Subject: Additional Mars image from 6/16/2018 19:11UT

Received: 20 June 2018 at 18:44 JST

Dear CMO,

Here is an additional Mars image from 6/16/2018 19:11 UT

best regards,
http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180616/RHf16June18.png

Robert HEFFNER (Osaka, JAPAN)

¤·····Subject: Mars 19 June 2018 2057 RGB and IR

Received: 20 June 2018 at 16:19 JST

Hi all,

An early, low altitude view yesterday evening, with Sinus Meridian almost central, and just detectable through the dust.

Best regards, Clyde

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180619/CFs19June18n.png

Clyde FOSTER (Centurion, SOUTH AFRICA)

¤·····Subject: Mars 20 June 2018 0437 IR

Received: 20 June 2018 at 15:27 JST

Hi all,

A quick pre-sunrise IR capture from this morning which let me have a relook at the Tharsis region. Although the Tharsis volcanoes can be seen, including Olympus Mons, contrast appears to be low. Isolated dust clouds may be seen across the southern albedo features.

Best regards, Clyde

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180620/CFs20June18.png

Clyde FOSTER (Centurion, SOUTH AFRICA)

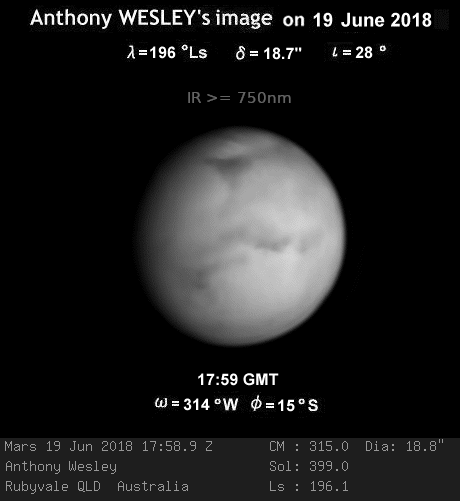

¤·····Subject: Mars dust storm update, June 19

Received: 20 June 2018 at 12:25 JST

Hi all, here's an image of Mars from this morning showing the extent of the current dust storm over this hemisphere.

I've included a reference image from WinJupos so you can see just how much of the surface is obscured.

Streaks of dust can be seen over the south polar cap, and Hellas Basin seems to be full of dust. Syrtis Major is almost completely hidden.

Link:
http://www.acquerra.com.au/astro/gallery/mars/20180619-175854/m20180619-175854utc.png

regards, Anthony

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180619/AWs19June18.png

Anthony WESLEY (NSW, AUSTRALIA)

¤·····Subject: Mars June 19

Received: 20 June 2018 at 06:38 JST

Hi Today the dust appears to be thinning in the infrared image compared to yesterday.

I also noticed the south polar cap is also a little bit more visible visually today.

In addition. there appears to be a slight haze in the blue and colored image of Mars. The haze is Northward along the CM from the SPC into the temperate latitudes

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180619/TWl19June18.png

Tim WILSON (Jefferson City, MO)

¤·····Subject: Saturn images (June 15th.)

Received: 20 June 2018 at 04:40 JST

Hi all,

Here is an image from June 15th under poor seeing. The bright polar storm is easily seen.

http://www.damianpeach.com/sat18/s2018-06-15-0523_8-RGBdp.jpg

Best Wishes

Damian PEACH (Selsey, WS, the UK)

http://www.damianpeach.com/mars2018/m2018_06_15dp.jpg

¤·····Subject: Mars images (June 15th.)

Received: 20 June 2018 at 04:37 JST

Hi all,

Here is an image from June 15th. Average seeing. Significant dust obscuration, and Mare Tyrrhenum is absent due to dust. Also the SPC is significant obscured. Overall contrast of the albedo markings that are seen is notably reduced.

Best Wishes

http://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2018/180615/DPc15June18.png

Damian PEACH (Selsey, WS, the UK)
