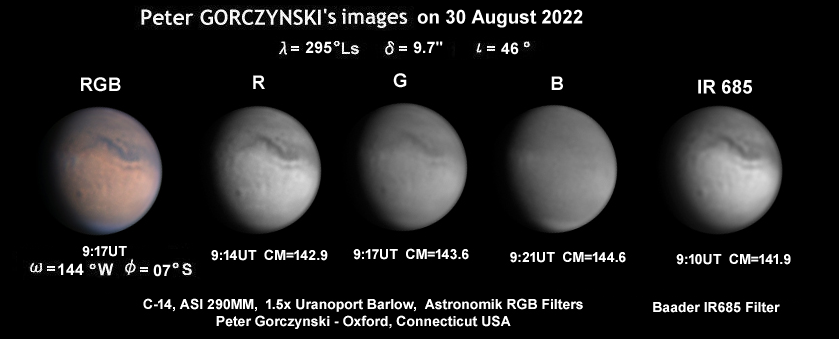

¤••••• Subject: Mars images - August 30, 2022

Received: 1 September 2022 at 06:24 JST

Sir,

Attached are sets of Mars images from August 30.

Average seeing (3/5). Poor transparency for the entire session (variable density fog).

Regards,

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220830/PGc30Aug22.png

Peter GORCZYNSKI (Oxford, CT)

¤••••• Subject: Mars Image Aug 29

Received: 30 August 2022 at 08:47 JST

Hello
Sending over todays images..

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220829/TWl29Aug22.png

Tim WILSON (Jefferson City, Mo)

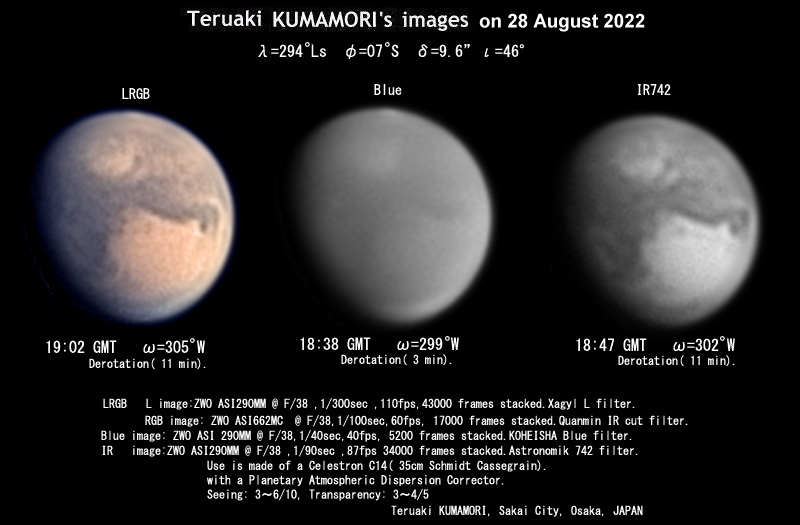

¤••••• Subject: Mars 2022/08/28-Kumamori

Received: 29 August 2022 at 21:36 JST

Mars images on 28 August 2022.

Best regards,

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220828/Km28Aug22.png

Teruaki KUMAMORI (Osaka, JAPAN)

¤••••• Subject: Mars images - August 27, 2022

Received: 28 August 2022 at 11:02 JST

Sir,

Attached are sets of Mars images from August 27.

Average seeing (3/5) for the IR image, above average seeing (3/5+) for the RGB image.

Poor transparency for the entire session (in and out of fog).

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220827/PGc27Aug22.png

Regards,

Peter GORCZYNSKI (Oxford, CT)

¤••••• Subject: Mars 2022/08/26

Received: 27 August 2022 at 18:33 JST

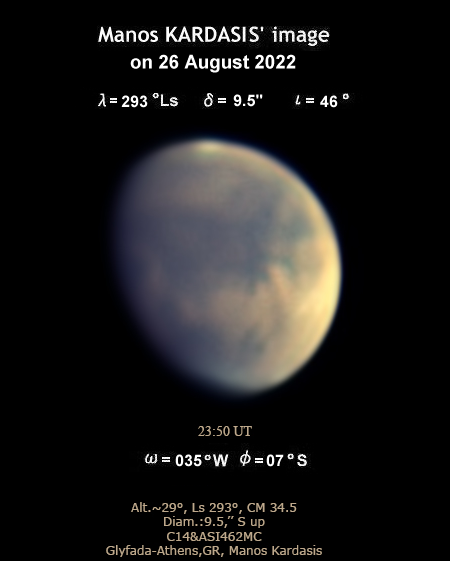

Hello, here is my last night obs on the new apparition.

SPC very small.

Excellent conditions but low altitude:

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220826/MKd26Aug22.png

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220820/MKd20Aug22.png

Manos KARDASIS (Glyfada-Athens, GREECE)

http://kardasis.weebly.com/mars-2022.html

¤••••• Subject: Mars Images Aug 26

Received: 27 August 2022 at 07:44 JST

Good Day,
Sending over this mornings Mars images.

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220826/TWl26Aug22.png

Tim WILSON (Jefferson City, Mo)

¤••••• Subject: Mars: August 25, 2022

Received: 26 August 2022 at 11:23 JST

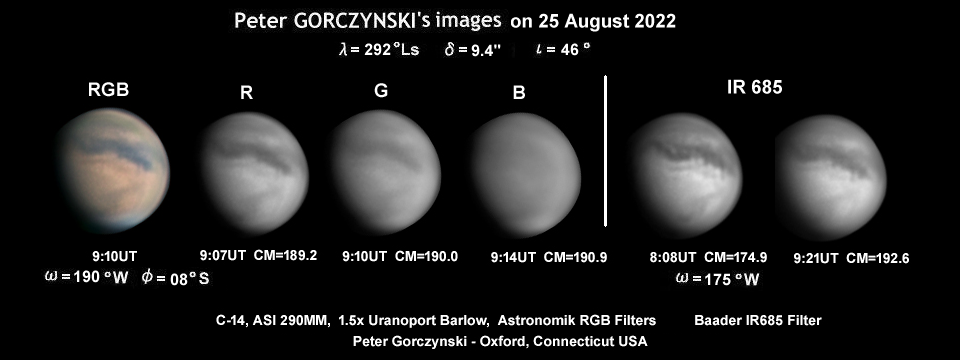

Sir,

Attached are sets of Mars images from August 25.

Poor seeing (2/5), average transparency.

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220825/PGc25Aug22.png

Regards,

Peter GORCZYNSKI (Oxford, CT)

¤••••• Subject: Mars: August 25, 2022

Received: 26 August 2022 at 11:43 JST

Hi,

I don't think I send you this image of Mars August 19, 2022 at 10:29 UT.

Thanks,

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220819/FMl19Aug22.png

Frank J MELILLO (Holtsville, NY)

¤••••• Subject: Mars: August 25, 2022

Received: 26 August 2022 at 11:23 JST

Hi,

I have attached my image of Mars August 25, 2022 at 10:22 UT.

Thanks,

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220825/FMl25Aug22.png

Frank J MELILLO (Holtsville, NY)

¤••••• Subject: Mars Images Aug 24, 25 Tim Wilson

Received: 26 August 2022 at 05:40 JST

Hello,

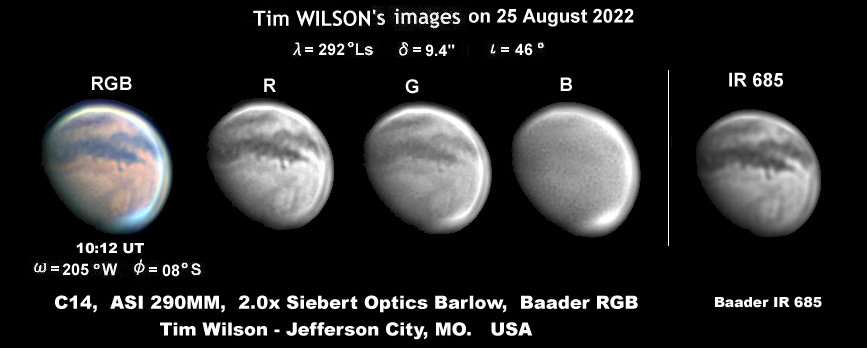

Sending over the lastest Mars Images.

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220824/TWl24Aug22.png

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220825/TWl25Aug22.png

Tim WILSON (Jefferson City, Mo)

¤••••• Subject: Mars - August 23rd

Received: 26 August 2022 at 01:49 JST

Hi To All!,

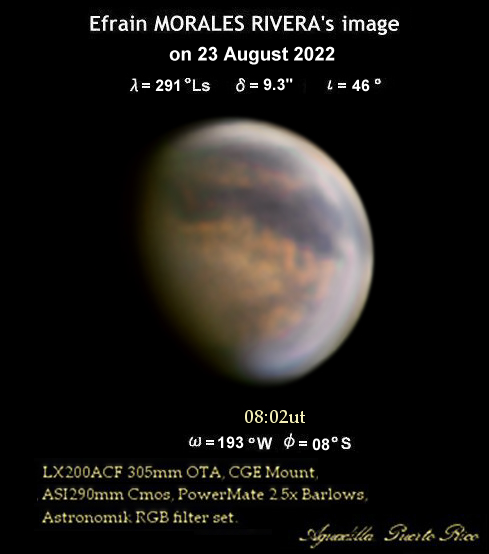

Here are my session on August 23rd. a session of Jupiter on the 23rd also.

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220823/EMr23Aug22.png

Efrain MORALES RIVERA (Aguadilla, Puerto Rico)

¤••••• Subject: Mars images - August 24, 2022

Received: 25 August 2022 at 09:23 JST

Sir,

Attached are sets of Mars images from August 24.

Average seeing (3/5) good transparency.

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220824/PGc24Aug22.png

Regards,

Peter GORCZYNSKI (Oxford, CT)

¤••••• Subject: Jupiter image (August 21st)

Received: 25 August 2022 at 00:19 JST

Hi all,

Here is an image from the 21st. Some periods of good seeing amongst the clouds.

http://www.damianpeach.com/jup22/2022-08-21-0052_3-RGBdp.jpg

Best wishes,

Damian PEACH (Selsey, WS, the UK)

Web: http://www.damianpeach.com/

¤••••• Subject: Mars Images Aug 22, 23

Received: 24 August 2022 at 07:28 JST

Hello,

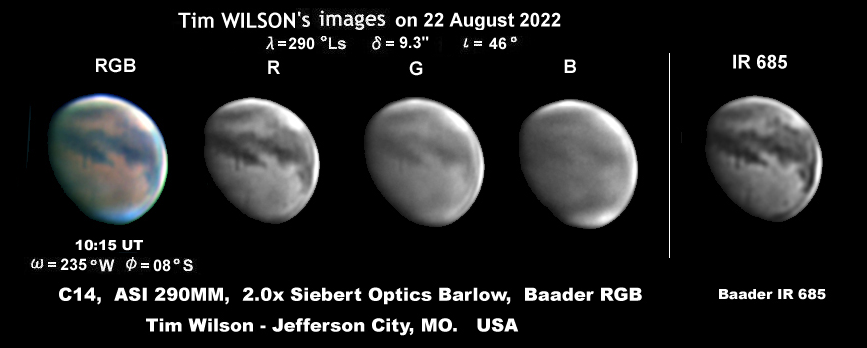

Enclosed are images from Aug 22 and 23, 2022.
Seeing was good both days.

I believe I have the necessary information on the images themselves
if you need more information included on future images please let me know..

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220822/TWl22Aug22.png

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220823/TWl23Aug22.png

Thank You,

Tim WILSON (Jefferson City, Mo)

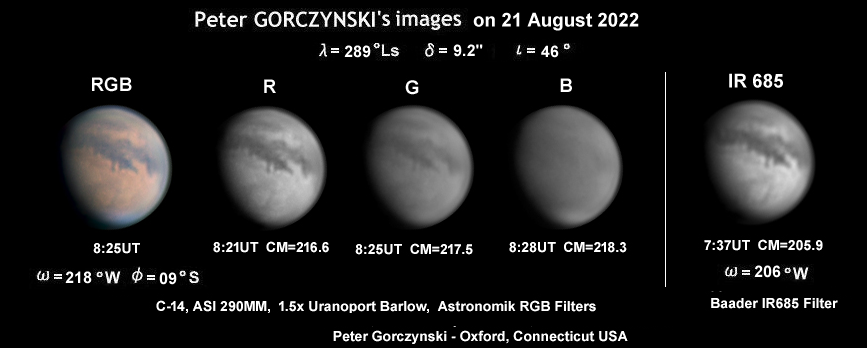

¤••••• Subject: Mars images - August 21, 2022

Received: 22 August 2022 at 07:37 JST

Sir,

Attached are sets of Mars images from August 21.

Good seeing (3/5+) in average transparency for the IR image.

Very good seeing (4/5) for the RGB set, with below average to poor variable transparency.

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220821/PGc21Aug22.png

Regards,

Peter GORCZYNSKI (Oxford, CT)

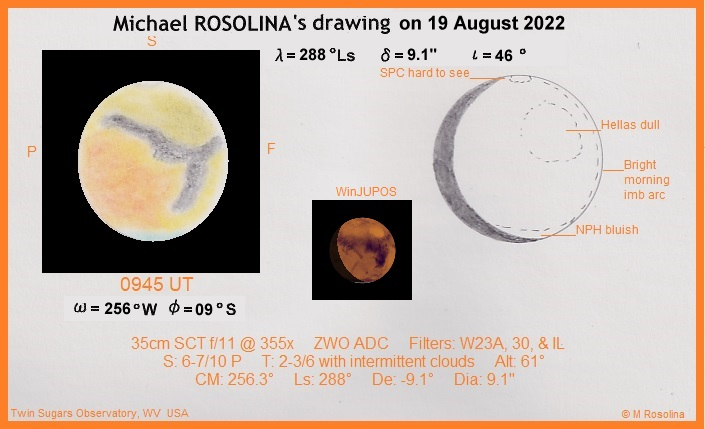

¤••••• Subject: Mars Sketch 19 August 2022

Received: 22 August 2022 at 01:59 JST

Hello,

I have attached my most recent Mars observation

2022/08/19 0945 UT

CM: 256.3 Ls: 288 De: -9.1 Dia: 9.1"

35cm SCT f/11 @ 355x ZWO ADC Filters: W30, 23A, & IL

S: 6-7/10 P T: 2-3/6 with clouds

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220819/MRs19Aug22.png

Michael ROSOLINA　(Friars Hill, WV)

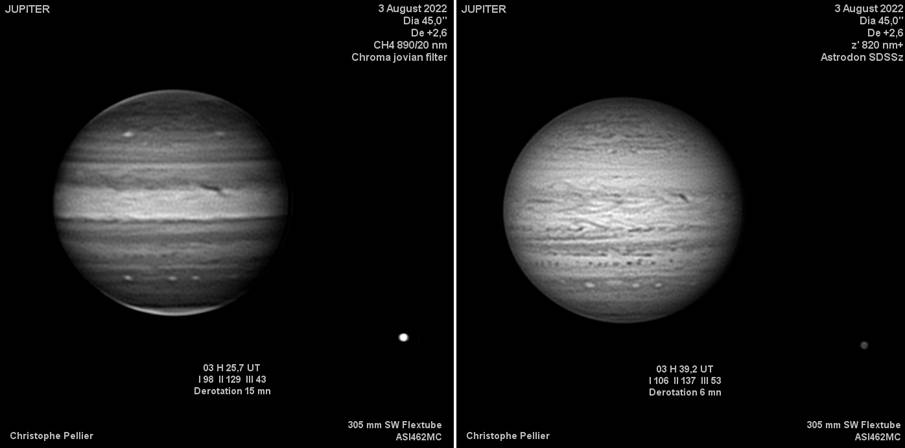

¤••••• Subject: Jupiter images, August 3rd 2022

Received: 21 August 2022 at 23:53 JST

Hi all,

Here is an IR series from August 3rd.

Regards,

Christophe PELLIER (Nantes, FRANCE)

Planetary astronomy and imaging

¤••••• Subject: Saturn images, August 3rd 2022

Received: 21 August 2022 at 23:54 JST

Hi all,

Some details are probably detected with the r' filter...

But I should have made some animations!

Regars,

Christophe PELLIER (Nantes, FRANCE)

Planetary astronomy and imaging

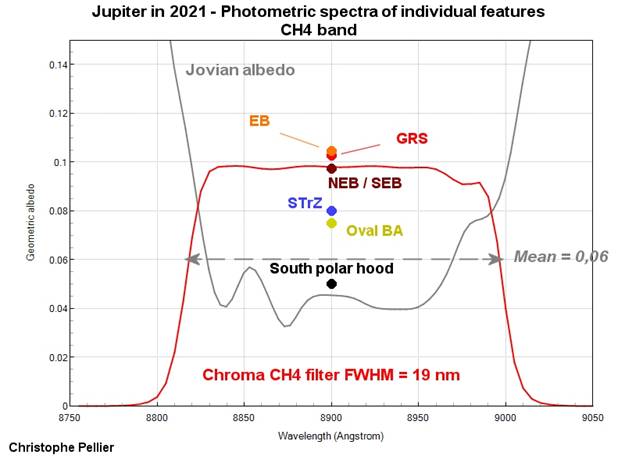

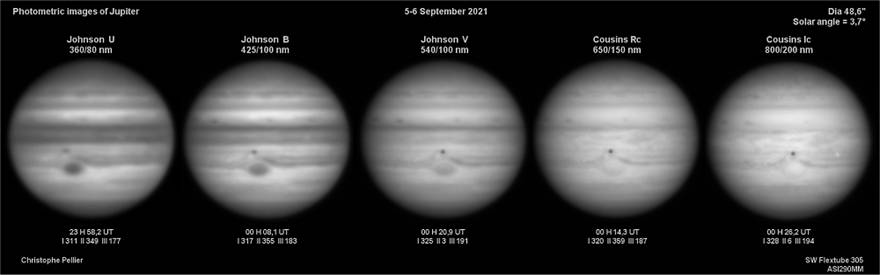

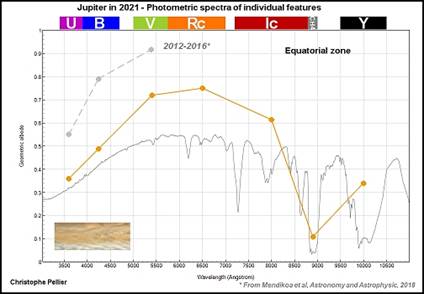

¤••••• Subject: The colours of Jupiter in 2021 (3)

Photometric spectra of individual features and regions

Received: 21 August 2022 at 23:29 JST

Hi all,
Here is the last topic from my study.

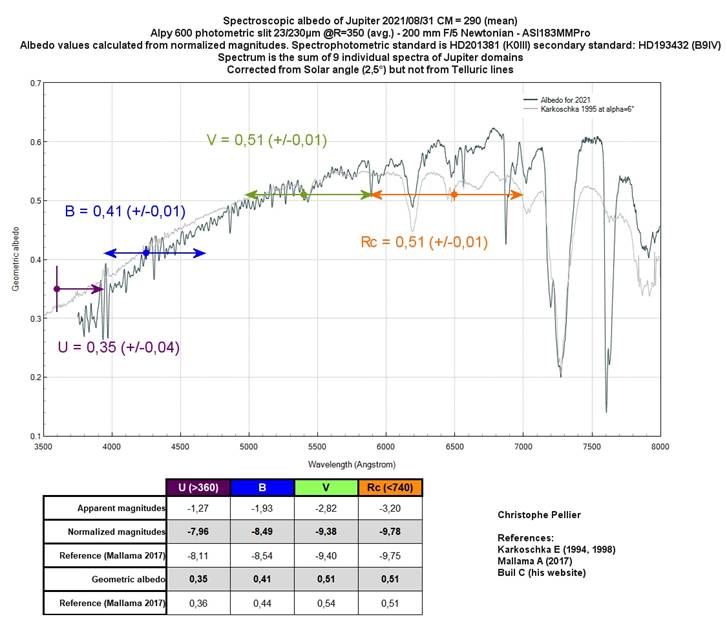

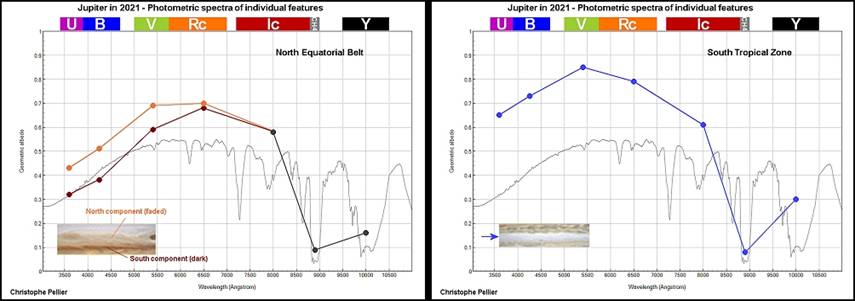

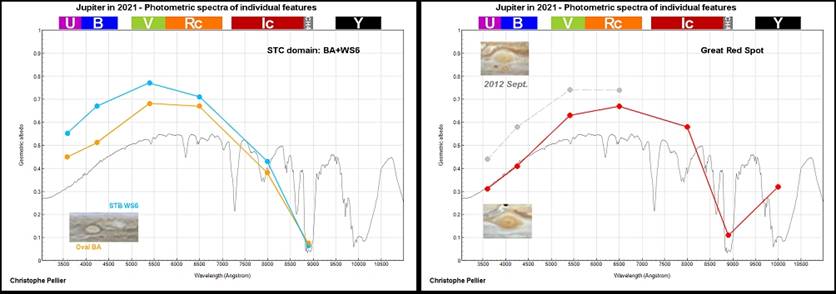

North-South scans work wonderfully to measure the global state of the planet, but are not suited to measure individual features such as the GRS. In order to produce data about them, I have experimentated a second method, which is producing photometric spectra of some precise regions of the globe, equivalent to a spectroscopic analysis, but with only a few points.

Values are simply found by measuring, when they are on the central meridian, the ratio of the brightness of the feature / the brightness of the whole globe, X the geometric albedo of the planet. Beofre that, the brightness of the individual feature is recalculated to find the brightness it would present, if it had the same geometric surface as the globe. By "brightness", I understand the intensity of the feature/globe measured on the photometric, unprocessed, image through a software (IRIS).

This method does not only work for individual spots, but also for belts or zones providing that they present a rather homogeneous aspect throughout all the longitudes. For example, in 2021, it is possible to measure the difference in albedo/color of the two parts of the NEB.

Because the absolute values measured inside the CH4 band are, by nature, very small in comparison with the other bands, I have made a specific graphic.

The reason why most of the values look to be much brighter than the spectroscopic albedo from Karkoschka (grey profile), is simply because the value for the whole globe includes the light gradient from center to limb. Measuring features on the CM leads to much higher values, in general.

As for any analysis, this way to produce results also suffers from limits:

It is less relevant for belts or zones that are not homogeneous throughout all the longitudes. For that reason, there is no graph for the SEB, for example.

Values are not corrected for the gradient of light between the equator and the poles. This means that it is only wise to compare date inside a given domain in latitude, but we should be careful when trying to compare values taken from different domains if they do not benefit from the same angle of illumination by the Sun.

Some measurements have been made when features where quite away from the central meridian. A coefficient has been measured to correct the data in this respect, considering that the photometric variation of the feature when turning from limb to CM was the same as its domain of origin ; but of course, in the reality, this might not be exactly the case. This could have led to errors, but I believe that they are reasonable.

Finally, I have made a few attempt at measuring values from past apparitions, to compare, when features presented a widely different aspect. I present two that were quite obvious, but some of the results I have obtained in this respect were mixed. So take that with caution, of course.

I hope to see some of you at the EPSC to discuss this, and many other things :)

Regards,

Christophe PELLIER (Nantes, FRANCE)

Planetary astronomy and imaging

¤••••• Subject: Mars: August 19, 2022

Received: 20 August 2022 at 09:18 JST

Hi,

I have attached my image of Mars August 19, 2022 at 10:29 UT.

Best,

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220819/FMl19Aug22.png

Frank J MELILLO (Holtsville, NY)

¤••••• Subject: Jupiter images (August 15th)

Received: 18 August 2022 at 01:37 JST

Hi all,

Here is an image from the 15th.

Very poor transparency allowed only a handful of captures before clouds ended play.

Europa alongside the planet.

http://www.damianpeach.com/jup22/2022-08-15-0333_1-RGBdp.jpg

Best wishes,

Damian PEACH (Selsey, WS, the UK)

Web: http://www.damianpeach.com/

¤••••• Subject: Mars images - August 16

Received: 17 August 2022 at 09:42 JST

Sir,

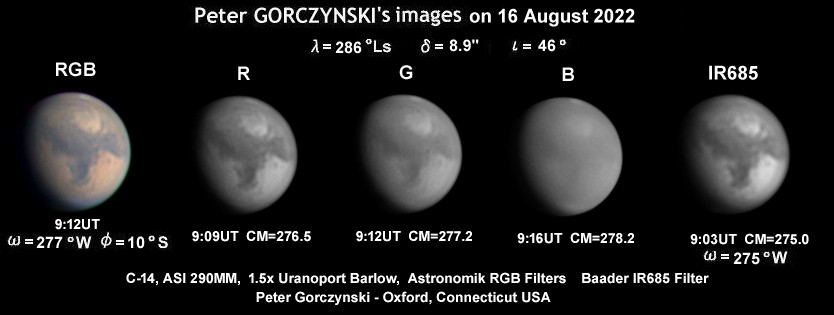

Attached are sets of Mars images from August 16.

Very good seeing (4/5+). Average transparency.

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220816/PGc16Aug22.png

Regards,

Peter GORCZYNSKI (Oxford, CT)

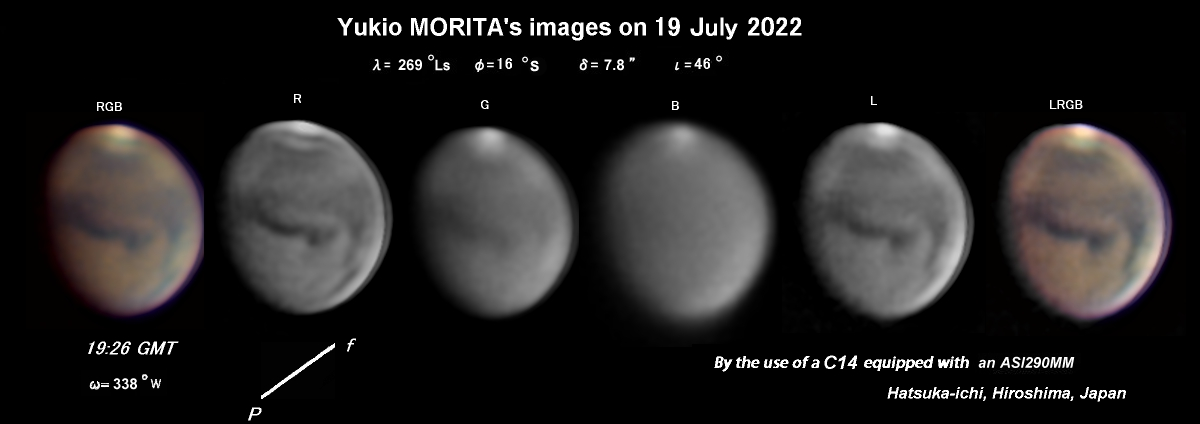

¤••••• Subject: Mo mars

Received: 16 August 2022 at 19:18 JST

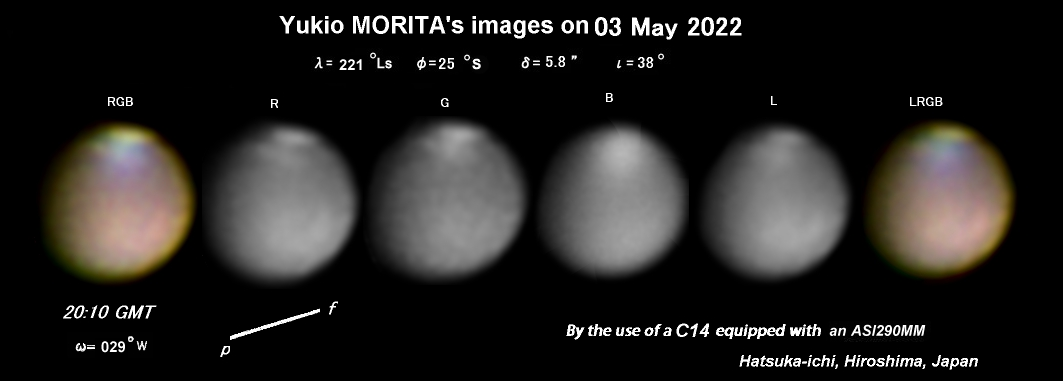

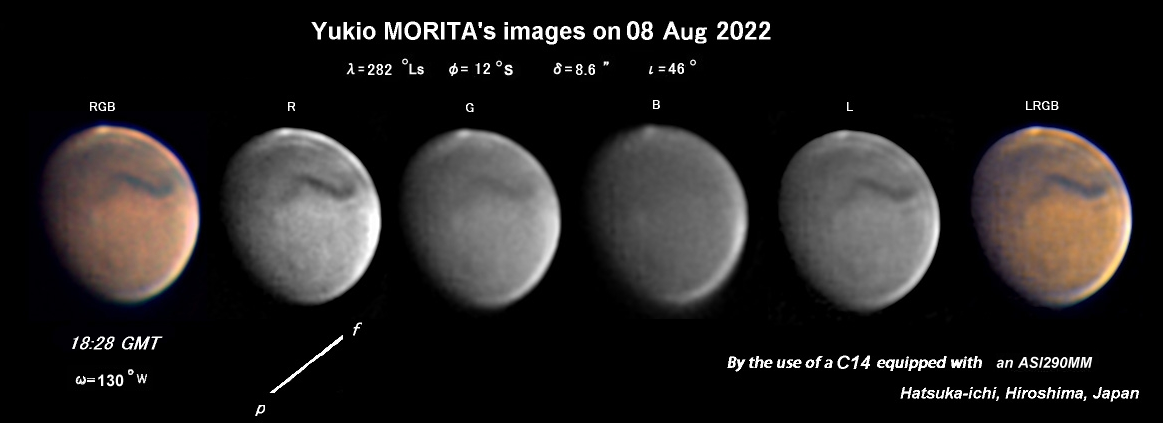

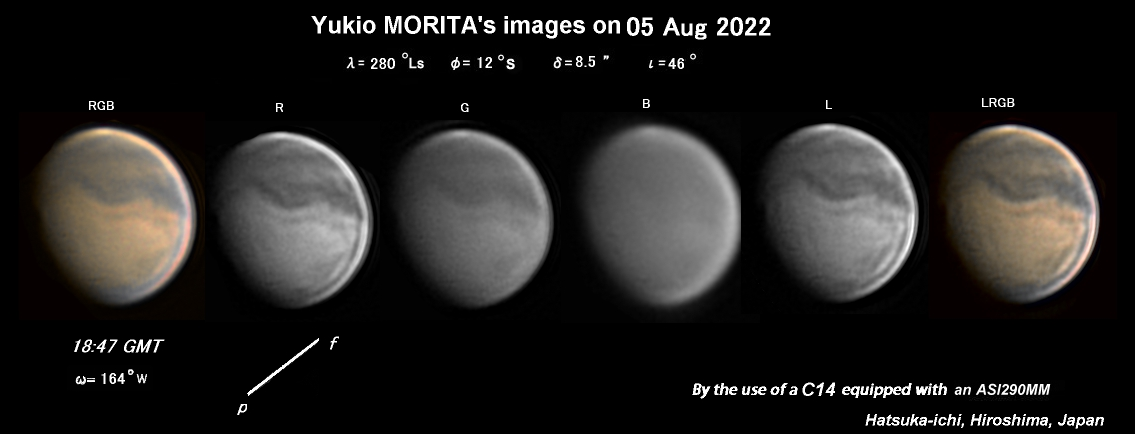

Mars images from on 3 May to on 8 August 2022.

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220808/Mo08Aug22.png

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220805/Mo05Aug22.png

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220719/Mo19July22.png

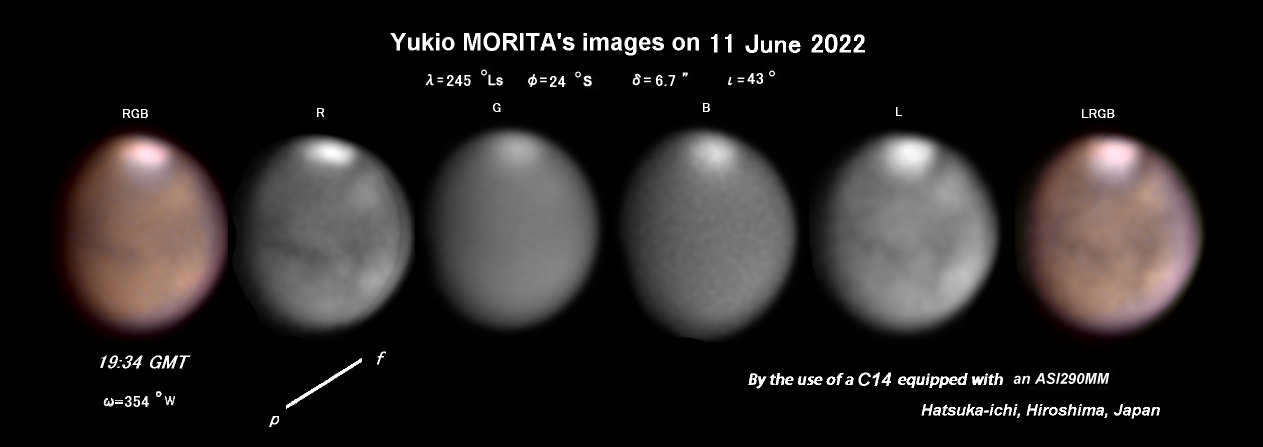

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220611/Mo11June22.png

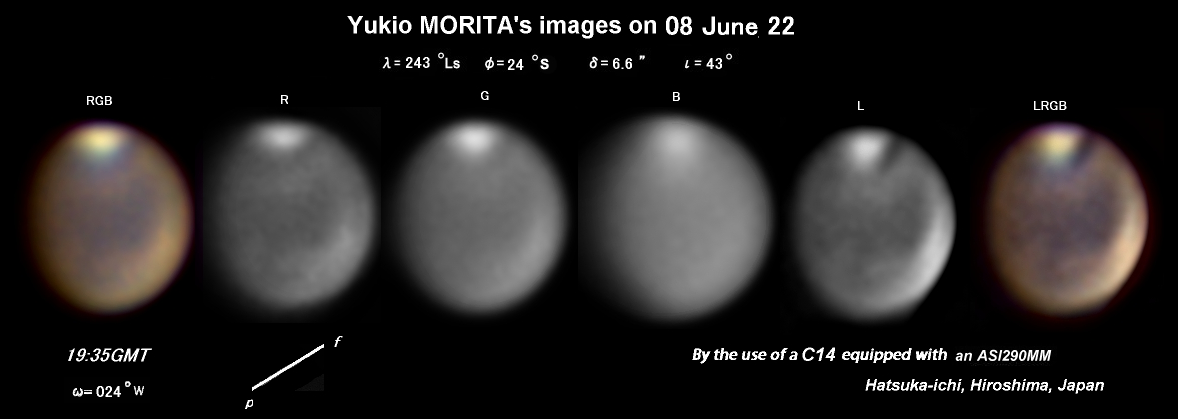

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220608/Mo08June22.png

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220601/Mo01June22.png

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220527/Mo27May22.png

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220503/Mo03May22.png

Best regards,

Yukio MORITA (Hiroshima Japan)

¤••••• Subject: Mars images - August 15

Received: 16 August 2022 at 07:07 JST

Sir,

Attached are sets of Mars images from August 15.

Very good seeing (4/5). Good transparency.

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220815/PGc15Aug22.png

Regards,

Peter GORCZYNSKI (Oxford, CT)

¤••••• Subject: Mars: August 14, 2022

Received: 15 August 2022 at 13:19 JST

Hi,

I have my latest images of Mars August 14, 2022 at 11:37 UT and 11:39 UT.

Thanks,

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220814/FMl14Aug22.png

Frank J MELILLO (Holtsville, NY)

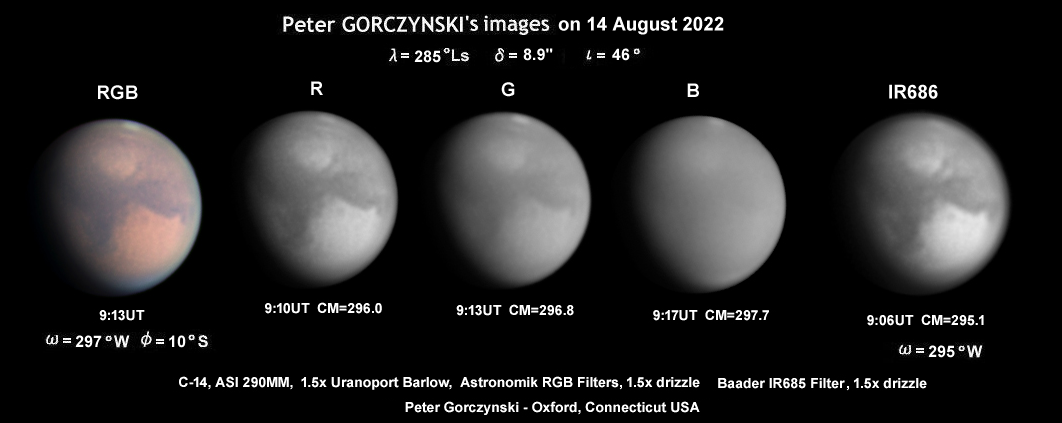

¤••••• Subject: Mars images - August 14, 2022

Received: 15 August 2022 at 09:15 JST

Sir,

Attached are sets of Mars images from August 14.

Very good seeing (4/5+). Good transparency.

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220814/PGc14Aug22.png

Regards,

Peter GORCZYNSKI (Oxford, CT)

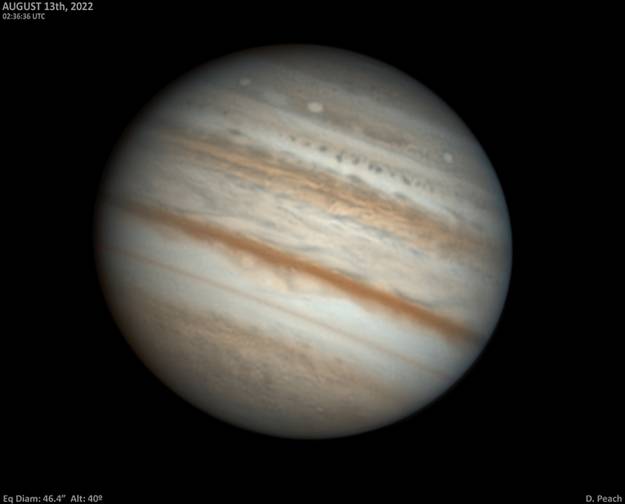

¤••••• Subject: Jupiter images (August 12th, 13th)

Received: 15 August 2022 at 02:24 JST

Hi all,

Here are some images from Aug 12th and 13th.

Seeing not good on either night but enough for some results.

The 14th seeing was too poor to take anything.

http://www.damianpeach.com/jup22/2022-08-12-0327_0-RGBdp.jpg

http://www.damianpeach.com/jup22/2022-08-13-0236_6-RGBdp.jpg

Best wishes,

Damian PEACH (Selsey, WS, the UK)

Web: http://www.damianpeach.com/

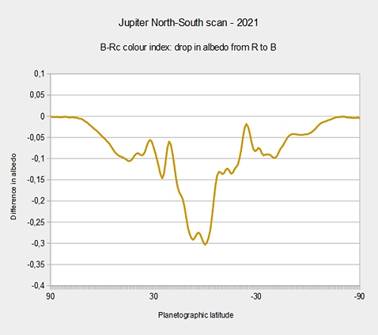

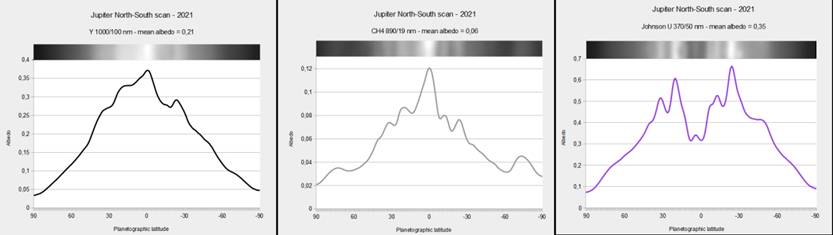

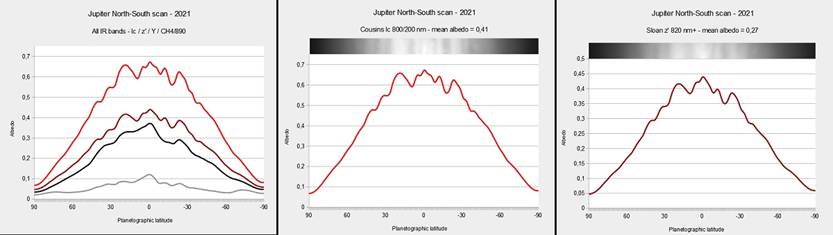

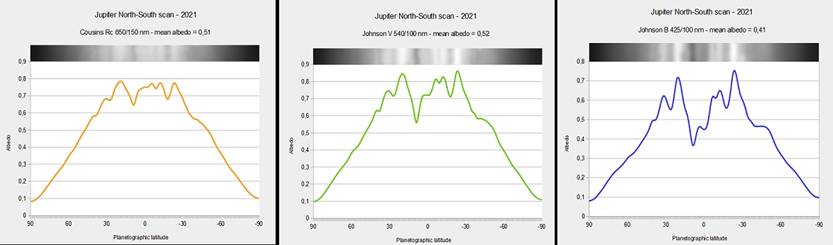

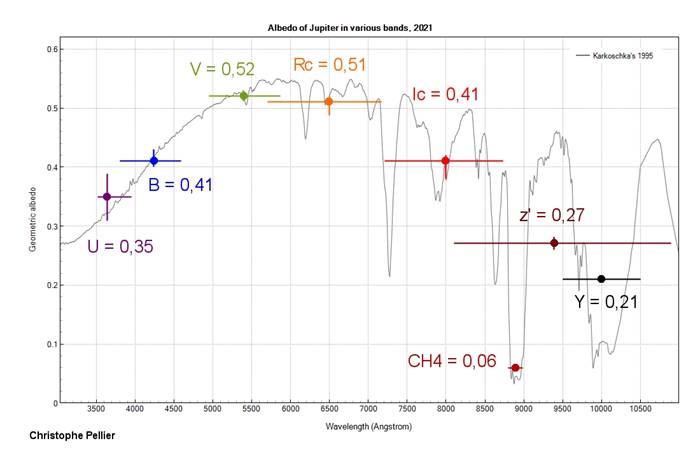

¤••••• Subject: The colours of Jupiter in 2021 (2) North-South scans of all bands

Received: 14 August 2022 at 20:30 JST

Hi all,

Here is the second part of my little study.

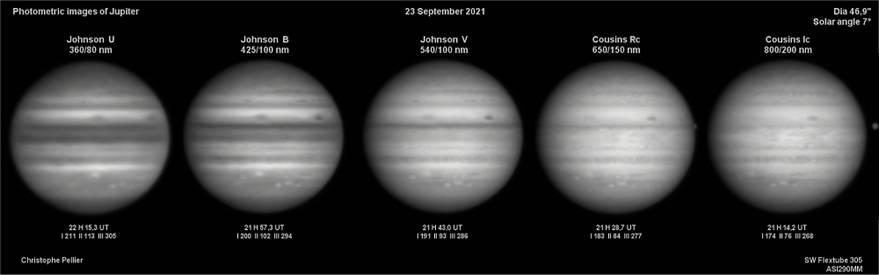

Once the global albedo of the planet has been calculated, it is possible to exploit the values in different ways. One is to retrieve the photometric profile of Jupiter from one pole to the other, relevant because of the banding pattern, and scale it against the albedo value. The best way to do this would be to measure the profile at several longitudes, in order to average the local variations that still exist. However, for a given observer from an average observing site (me...) it can be difficult to obtain enough images to do so. In order to face this problem, it is possible however, to decide that a given face of the planet can be judged as "representative" of the global state of its atmosphere (especially, having the GRS at the central meridian is to be avoided!).

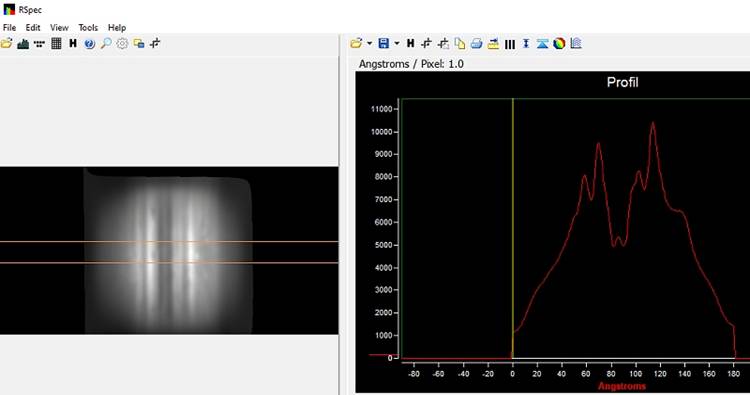

Another way to deal with this is to retrieve the profile by "misusing" a software dedicated to spectroscopy. Such softwares can measure a wider range of longitudes and not a single line (see the figure attached). This will smooth a bit local variations.

The profile is calibrated by finding the value of a given detail, such as the equatorial band, or any belt/zone. I will explain how I did that in the third message.

Below are the figures. In 2021, the planet has experimented a very strong drop in albedo of the whole system I, with an especially dark equatorial "pseudo band". In comparison with a more "normal" whitish state, the drop in albedo in blue light represents around 3/4 points of albedo (from ~80% to ~45%) which looks quite a lot.

In the meantime, the equatorial band reached a very high albedo value in the CH4 band, around 12% (starting from an albedo of 0,06 or 6%). This is a now identified correlation between extreme darkness in UV/bright CH4 value, that points at a particularily high structure.

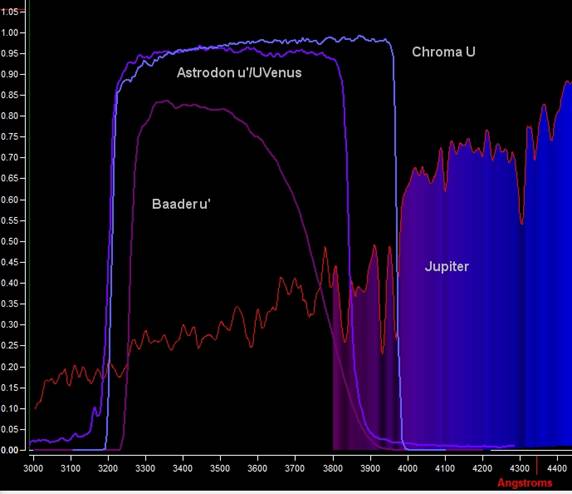

I also propose two coefficients of colors:

1) B minus Rc : this will measure how much light is absorbed when passing from red (a color where the albedo of the planet is more steady) to blue, the wavelength where the most profund variations of albedo are recorded. This is an index to evaluate the variations of colors of belt and zones from a period to another.

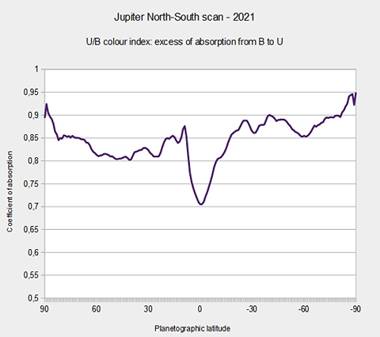

2) U divided by B: this tries to reveal special episodes of strong yellow/orange coloration. In the UV, such event will traduce themselves into a superior degree of absorption in comparison with the adjacent (and relatively close-looking) blue band. In 2021, the equatorial band, inside the EZ, shows this behavior. So would do the red spots sometimes (but this will be measured with another method).

Here is a link to my EPSC poster abstract in Granada where you will find additionnal technical infos and references.

On the third (and last) message, I will send results from photometric spectra of individual features.

Christophe PELLIER (Nantes, FRANCE)
Planetary astronomy and imaging

¤••••• Subject: Saturn images, August 2nd 2022 - Details detected with animations

Received: 14 August 2022 at 01:20 JST

Hi all,

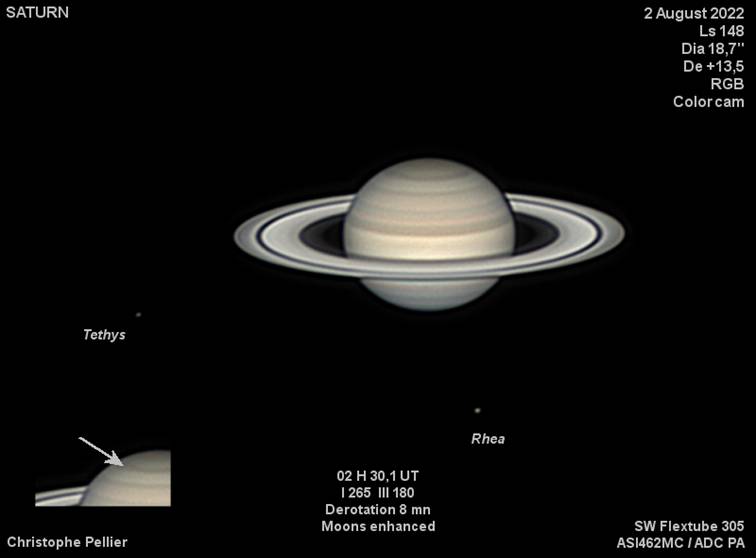

Here are the results from the excellent night of August 2nd.

Animations built with the BP642 filter revealed some details, especially a dark spot on the southern winter hemisphere...

The current white polar spot is also visible on the image taken with the ASI462MC.

Regards,

Christophe PELLIER (Nantes, FRANCE)
Planetary astronomy and imaging

¤••••• Subject: Jupiter image (August 11th)

Received: 13 August 2022 at 02:31 JST

Hi all,

Very poor seeing on the 11th meant only this near IR image was possible.

http://www.damianpeach.com/jup22/2022-08-11-0231_5-IR642dp.jpg

Best wishes,

Damian PEACH (Selsey, WS, the UK)

Web: http://www.damianpeach.com/

¤••••• Subject: Jupiter double transit (August 9th)

Received: 12 August 2022 at 04:15 JST

Hi all,

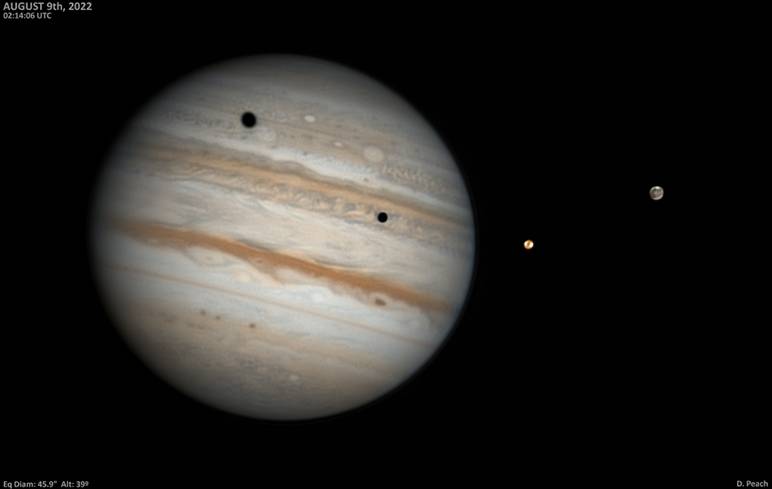

Here is an image from August 9th showing a double shadow transit of Io and Ganymede with both moons alongside.

http://www.damianpeach.com/jup22/2022-08-09-0214_1-RGBdp.jpg

Best wishes,

Damian PEACH (Selsey, WS, the UK)

Web: http://www.damianpeach.com/

¤••••• Subject: Mars images - August 7, 2022

Received: 11 August 2022 at 22:47 JST

Sir,

Attached are sets of Mars images from August 7.

Average seeing (3/5). Below average transparency (hazy thin clouds).

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220807/PGc07Aug22.png

Regards,

Peter GORCZYNSKI (Oxford, CT)

¤••••• Subject: Mars M220810 ishibashi

Received: 11 August 2022 at 10:27 JST

Mars image on 10 August 2022.

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220810/Is10Aug22.png

Best regards,

Tsutomu ISHIBASHI (Kanagawa, JAPAN)

¤••••• Subject: Mars - August 5, 6, 8th

Received: 11 August 2022 at 09:58 JST

Hi To All!,

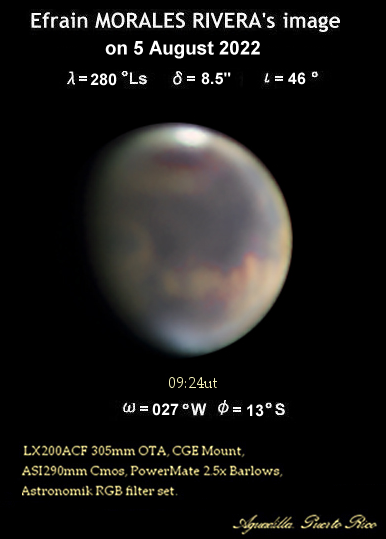

Here are my session on August 5th, 6th and 8th.

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220805/EMr05Aug22.png

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220806/EMr06Aug22.png

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220808/EMr08Aug22.png

Efrain MORALES RIVERA (Aguadilla, Puerto Rico)

¤••••• Subject: The colours of Jupiter in 2021 (1) Geometric albedo of the planet in various bands

Received: 11 August 2022 at 05:14 JST

Hi all,

I'm going to send a few messages regarding the results I have obtained for my personal research, which is the measurement of the variations of Jupiter's colours. This idea had been suggested by John Rogers during the 2018 JUNO meeting in London and I have been looking to get results from that idea since then.

This first message presents the method and results I have obtained when trying to calculate the geometric albedo of the planet - basically the values obtained measure how much sunlight the planet is able to reflect from the amount it receives (see the links to get more details if needed).

Usually those values are calculated against non-variable stars, but this method can be tough to master, especially if the planet is found at a low elevation in the sky, as this was the case for me during the last years. During the EPSC 2019, Dr Jeff Morgenthaler from the Planetary Science Institute suggested me to try to find the results from the galilean satellites, and not stars. The point is that if galilean moons are not steady sources of light as will be stars, their locations very close to the planet will eliminate many sources of errors, while their own variations can be predicted at least to a reliable amount.

To my own surprise, the results obtained from that idea led to quite accurate results, considering the modest ambition of this amateur work.

Here are a links to fully understand how I processed the method if needed:
Galilean Moons-based photometry for Jupiter (EPSC 2022 oral intervention)
The colours of Jupiter in 2021 (EPSC 2022 poster intervention)
Links to the method from my Astrosurf website:
GALILEAN PHOTOMETRY FOR U, B and V BANDS
GALILEAN PHOTOMETRY FOR R AND IR BANDS
GALILEAN PHOTOMETRY FOR JUPITER: RESULTS AND DISCUSSION

The only result that has not been correctly measured with these methods is the albedo of Jupiter in Ultraviolet. For this, I'm sending as well a corrected result from the spectroscopic observation I made in August 30th, 2021, and the Alpy600 spectrograph, which looks to be quite good at measuring the Johnson U band.

For 2021, the results look to correctly measure a noticeable drop of the planet's albedo in the short wavelengths, compatible with the great darkening of the whole system I observable in images.

On the next message, I will send results from photometric north-south scans for all the observed bands.

Christophe PELLIER (Nantes, FRANCE)
Planetary astronomy and imaging

¤••••• Subject: Re: Jupiter images on August 2nd, 2022, correction of CH4 image

Received: 10 August 2022 at 05:20 JST

Hi all,

I'm sending a new processing of the CH4 image with correct registration, that shows that the BA aspect, although not completely homogeneous, is not that split !

Regards,

Christophe PELLIER (Nantes, FRANCE)
Planetary astronomy and imaging

¤••••• Subject: Jupiter image (August 7th)

Received: 10 August 2022 at 01:51 JST

Hi all,

Here is an image from August 7th.

Some brief moments of good seeing at times yielded a fine view of the GRS.

The turbulent STB/STropBand sector p. the GRS is wonderfully complex.

Will be interesting to see how this develops further.

http://www.damianpeach.com/jup22/2022-08-07-0313_1-RGBdp.jpg

Best wishes,

Damian PEACH (Selsey, WS, the UK)

Web: http://www.damianpeach.com/

¤••••• Subject: Mars 2022/08/08-Kumamori

Received: 9 August 2022 at 22:43 JST

Mars images on 8 August 2022.

Best regards,

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220808/Km08Aug22.png

Teruaki KUMAMORI (Osaka, JAPAN)

¤¤••••• Subject: Jupiter images on August 2nd, 2022, my best series so far

Received: 9 August 2022 at 05:33 JST

Hi all,

Here are some images taken under exceptional seeing on August 2nd.

Certainly my best B and Violet images so far of the planet!

The GRS looks to have darkened slightly since last year. Oval BA presents a curious "split" aspect in CH4, that looks to be visible as well on I, z', and Y images... ?

Regards,

Christophe PELLIER (Nantes, FRANCE)
Planetary astronomy and imaging

¤¤••••• Subject: Jupiter image (August 6th)

Received: 9 August 2022 at 02:08 JST

Hi all,

Here is an image from August 6th.

Europa alongside with its shadow in transit.

http://www.damianpeach.com/jup22/2022-08-06-0340_2-RGBdp.jpg

Best wishes,

Damian PEACH (Selsey, WS, the UK)

Web: http://www.damianpeach.com/

¤¤••••• Subject: Jupiter UV images, July 30th 2022

Received: 6 August 2022 at 23:56 JST

Hi all,

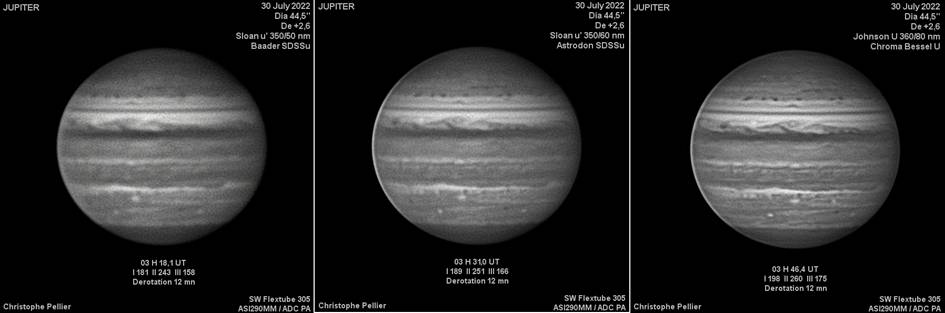

Here are some UV images of Jupiter taken through 3 different filters; the Chroma Bessel U, the Astrodon Sloan u'/UVenus, and the new Baader Sloan u'.

Although it looks subtle, I think that the fading Equatorial band that was so dark in 2021 can still be barely detected through the two u' filters, especially the Baader which is the "deepest" one.

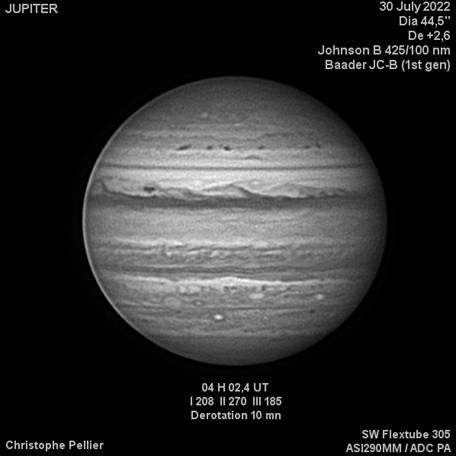

Also added is a B and RGB images.

Regards,

Christophe PELLIER (Nantes, FRANCE)
Planetary astronomy and imaging

¤¤••••• Subject: Saturn UV images on July 30th, 2022

Received: 6 August 2022 at 23:53 JST

Hi all,

Here are two UV images of Saturn taken with two different filters: the Chroma Bessel U, and the Astrodon Sloan u' (which I suspect to be identical to the UVenus).

The u' filter looks to show the same pattern, but with slightly increased contrast.

Regards

Christophe PELLIER (Nantes, FRANCE)
Planetary astronomy and imaging

¤¤••••• Subject: Mars images 2022 July 20 - August 4

Received: 6 August 2022 at 04:39 JST

Dear all,

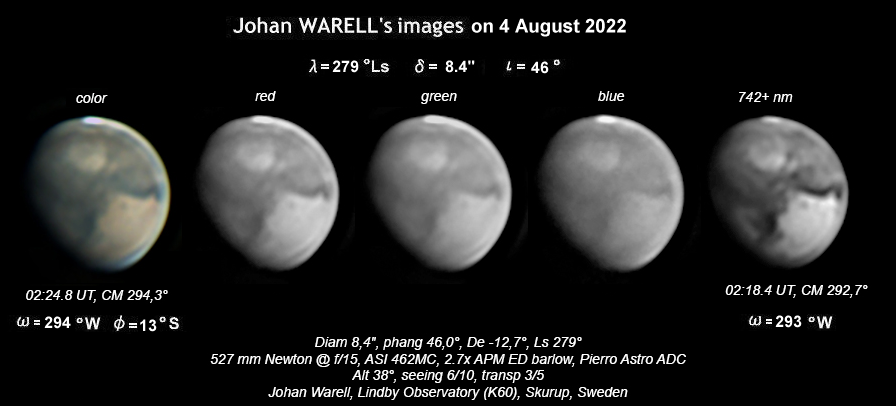

Sending you my first Mars images for this season, obtained with my home built 52 cm Newtonian at Lindby Observatory (K60), Sweden.

Sorry if you receive some of these images a second time; I have updated the send list to ensure all email addresses are correct.

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220804/JWr04Aug22.png

Best regards,

Johan WARELL (Skurup, SWEDEN)

¤¤••••• Subject: Mars: August 4, 2022

Received: 5 August 2022 at 13:58 JST

Hi,

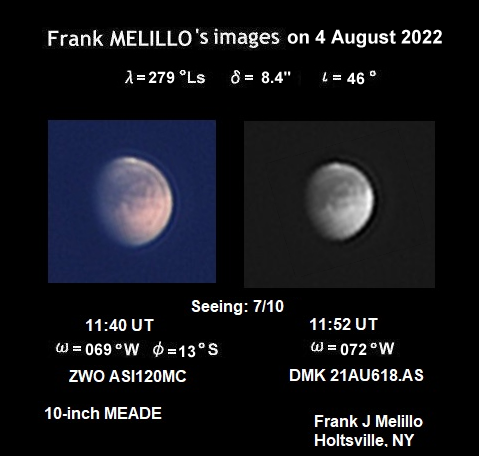

I have attached my latest images of Mars August 4, 2022 between 11:40 UT and 11:52 UT.

Thanks,

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220804/FMl04Aug22.png

Frank J MELILLO (Holtsville, NY)

¤¤••••• Subject: Mars, Jupiter and Saturn, 2022 July 20, 28 and 29

Received: 4 August 2022 at 06:36 JST

Dear all,

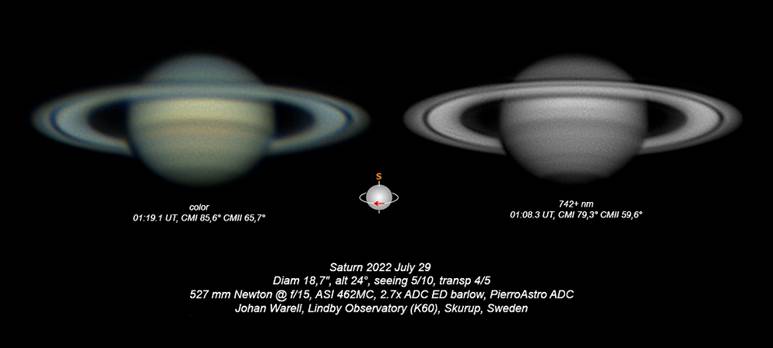

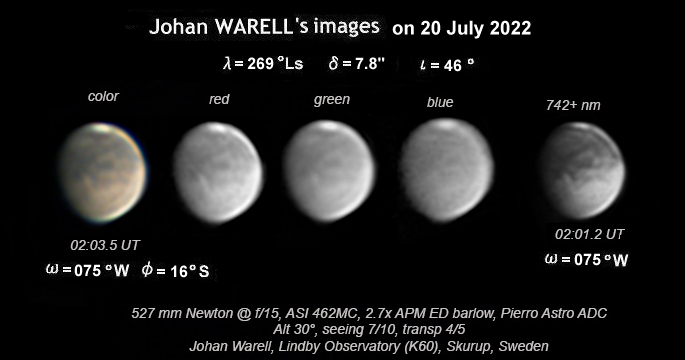

I have happily made my first observations of Saturn, Jupiter and Mars for this season, submitted here to your galleries and archives.

I am using my 527 mm Newt @f/15 at Lindby Observatory with Pierro Astro ADC, ASI462MC camera, NIR block filters and CH4 filter.

The planets are still low from 55 deg north and thus strongly susceptible to seeing, but altitude is steadily increasing for all three of them ;)

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220720/JWr20July22.png

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220728/JWr28July22.png

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220729/JWr29July22.png

All the best,

Johan WARELL (Skurup, SWEDEN)

¤¤••••• Subject: Mars M220802 ishibashi

Received: 3 August 2022 at 12:05 JST

Mars images on 2 August 2022.

Best regards,

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220802/Is02Aug22.png

Tsutomu ISHIBASHI (Kanagawa, JAPAN)

¤¤••••• Subject: Mars M220731 ishibashi

Received: 3 August 2022 at 12:13 JST

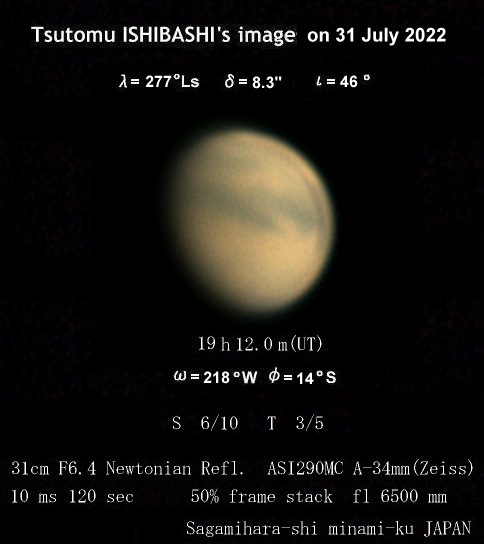

Mars image on 31 July 2022.

Best regards,

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220731/Is31July22.png

Tsutomu ISHIBASHI (Kanagawa, JAPAN)

¤¤••••• Subject: Mars 2022/08/01-Kumamori

Received: 2 August 2022 at 21:17 JST

Mars images on 1 August 2022.

Best regards,

https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220801/Km01Aug22.png

Teruaki KUMAMORI (Osaka, JAPAN)

¤¤••••• Subject: Jupiter image (July 30th)

Received: 2 August 2022 at 00:19 JST

Hi all,

Some brief moments of fair to good seeing on the 30th allowed a better result than previously.

Oval is BA is seen at lower left. Many complex spots along the STB latitudes paints a rather chaotic picture across this region.

http://www.damianpeach.com/jup22/2022-07-30-0331_8-RGBdp.jpg

Best wishes,

Damian PEACH (Selsey, WS, the UK)

Web: http://www.damianpeach.com/

Back to the CMO/ISMO Façade / CMO Home Page
