Solar
& Planetary LtE Now in March 2022
Not every email is
necessarily cited in the PDF’s CMO LtE
To see the preceding ones, click
The latest is at the top
¤¤••••• Subject: Mars 1 April 0336UT
RGB IR
Received: 1 April 2022 at 16:43 JST
Hi all,
set from this morning.
Solis
Lacus is at upper left. Some light afternoon equatorial cloud can be seen near
the terminator.
Best
regards,
https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220401/CFs01Apr22.png
¤¤••••• Subject: Mars 31 March 0420UT
RGB IR
Received:
Hi all,
This
morning’s session started off badly with an aborted Mars session due to
terrible seeing. I returned to Mars as the sky lightened, and found some better
conditions.
Olympus
Mons is near lower centre, with M Sirenum at upper right and Solis Lacus is
again coming into view at upper left. I believe it is Arsia Mons that appears
to show as a light spot near the centre.
Best
regards,
https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220331/CFs31Mar22.png
¤¤••••• Subject: RE: Mars 29 March
0401UT RGB IR
Received:
Thanks
for the comments Roger.
Always
best to have more than one set of images , off course,
so let me see if I can catch Mars tomorrow morning. At this stage low cloud is
forecast, but I always check.
I’ve
seen horizontal clouds in the north like this previously, but Mars is still
small, and I am wary of anything strange near the limbs!
Cheers,
¤¤••••• Subject: RE: Mars 29 March 0401UT
RGB IR
Received:
As you
probably know, when a "cloud" is brighter in green light than in
blue, we often think of it as a low-lying fog or ground frost, and of course it
could be both a high cloud plus low-lying condensations. At the Tharsis Montes,
one naturally thinks of it as ground frost on the higher elevations there. One
potentially misleading factor in this simple assessment is that there may be
differences in the processing of green versus blue images. If you are sure that
you process them the same, you can decide the matter for sure.
--
Roger
Roger VENABLE (
¤¤••••• Subject: Mars 29 March 0401UT
RGB IR
Received:
Hi all,
I was
again trying to snatch data between clouds this morning. Olympus Mons is near
the lower centre, with afternoon cloud over the Tharsis Montes persisting. The
possible northern horizontal "cloud" in green and the bright spot at
lower right (possible dust activity near the northern limb) would need to be
independently verified.
Anyone
interested in the rather unpleasant edge artefact, so often seen with Mars
images, can find more information in a highly informative, interesting and
comprehensive article by Martin Lewis: https://skyinspector.co.uk/mars-edge-artefact/
Best
regards,
https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220329/CFs29Mar22.png
¤¤••••• Subject: Mars 28 March 0338UT
RGB IR
Received:
Hi all,
I didn't
expect to get anything out this morning as there was almost total low cloud
cover. However there were some moments where it thinned enough for me to catch
data. This is another set from single best captures. M Sirenum is at upper
centre, with Olympus Mons at lower left. There appears to be afternoon
orographic clouds over Arsia Mons and Pavonis Mons near the terminator.
Although
I can artificially remove the edge artefact, I am deliberately leaving it as it
is for the time being, so as not to bring in any additional artificial
artefacts.
Best
regards,
https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220328/CFs28Mar22.png
¤¤••••• Subject: Re: Mars 27 March
0340UT RGB IR
Received:
Hi
It will
be interesting to see when the number of orographic clouds decreases over the
Tharsis volcanoes as the NPH forms over the artic in the Fall season that has
just started.
Good
seeing, Jim
Jim MELKA (
¤¤••••• Subject: Mars 27 March 0340UT
RGB IR
Received:
Hi all,
I had
variable seeing this morning with some cloud interference. The RGB is produced from
the single best channel images. Unfortunately the longer wavelength channels
are severely affected by edge artefact, which is likely exacerbated by the
eastern boundary of Elysium (Phlegra, Trivium Charontis and Cerberus) being
very close to the limb. Olympus Mons is at lower left, with some nice late
afternoon equatorial cloud over the Tharsis Montes region
Best
regards,
https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220327/CFs27Mar22.png

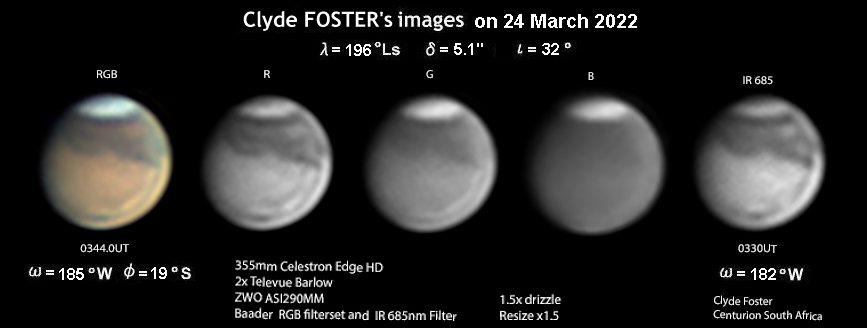

¤¤••••• Subject: Mars 24 March 0344UT
RGB IR
Received:
Hi all,
set from this morning with Amazonis close to centre,
M
Sirenum at upper left, M Cimmerium at upper right, Elysium at lower right and
Propontis at bottom centre. It still amazes me how extensive the SPC is
(possibly with some residual hood?).
Best
regards,
https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220324/CFs24Mar22.png
¤¤••••• Subject: Mars 21 March 0353UT
RGB IR
Received:
Hi all,
I again
had to find gaps in the extensive cloud cover and this set is made up from
single captures.
M
Cimmerium is above centre, and it is interesting that the
Best
regards,
https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220321/CFs21Mar22.png
¤¤••••• Subject: Mars 20 March 0358UT
RGB IR
Received:
Hi all,
After
nearly a week of cloudy mornings, I managed to catch Mars this morning, albeit
through extensive moving cloud, with the histogram swinging wildly. AS3! again did a wonderful job of extracting the best data.
M
Cimmerium and Hesperia cut across the upper centre of the planet, with M
Tyrrhenum and Syrtis Minor to their right. Syrtis Major is on the right limb
and Elysium is at lower left. Mars has attained 5" in size.
Best
regards,
https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220320/CFs20Mar22.png

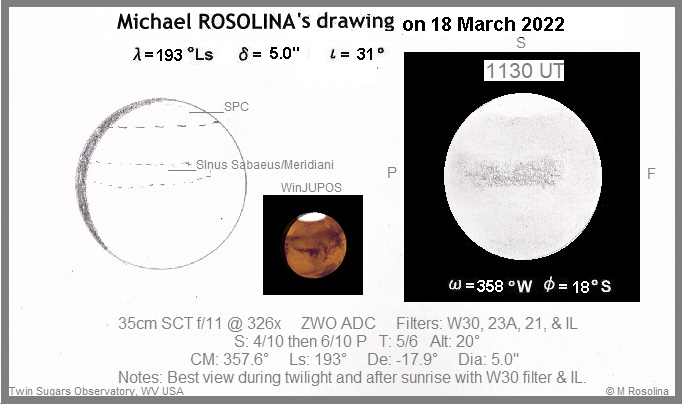

¤¤••••• Subject: Mars Sketch 18 March
2022
Received:
Hello,
I hope
you all are well. Here is my first sketch of Mars for this
apparition. I managed to see a little detail on the very small disk in
the brief period of decent seeing during morning twilight and shortly after
sunrise. The best view was in IL and with the magenta filter.
Michael Rosolina
2022/03/18 1130 UT
CM: 357.6 Ls:
193 De: -17.9 Dia: 5.0"
35cm SCT f/11 @ 326x
ZWO ADC Filters: W30 & IL
S: 4-6/10 P T: 5/6
Thank
you,
https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220318/MRs18Mar22.png
Michael ROSOLINA (
¤¤••••• Subject: Re: Mars 14 March
0331UT RGB IR
Received:
Hi
It
looks like airborne dust has expanded over most of
East,
North and West of Hellas are not changing. Good work.
Jim
Jim MELKA (
¤¤••••• Subject: Mars 14 March 0331UT
RGB IR
Received:
Hi all,
set from this morning with Syrtis Major and
Best
regards,
https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220314/CFs14Mar22.png

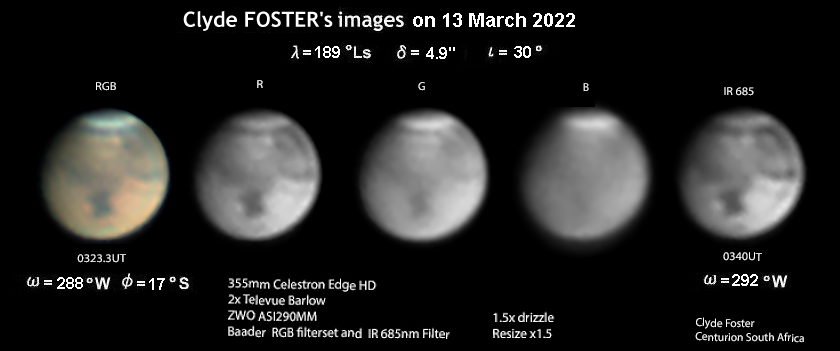

¤¤••••• Subject: Mars 13 March 0323UT
RGB IR
Received: 13 March 2022 at 18:24 JST
Hi all,
After a
string of cloudy mornings, I was able to catch Mars this morning with Syrtis
Major prominent.
There
may be some dust activity in
Best
regards,
https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220313/CFs13Mar22.png

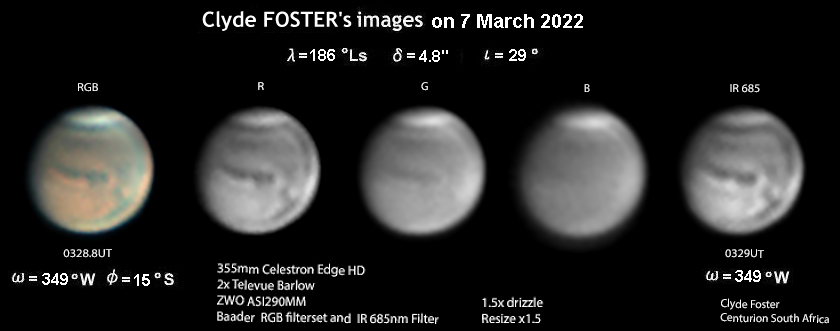

¤¤••••• Subject: RE: Mars 7 March
0329UT RGB IR
Received:
Hi all,
I see
that my Mars image set of 7 March does not appear on some of the databases/sites,
so I am not sure if it circulated properly.
I am
resending just in case. My original email below.
Best
regards,
From:
Clyde Foster <clyde@icon.co.za>
Sent:
Subject: Mars 7 March 0329UT RGB IR
Hi, all
After a
few cloudy mornings, I had some reasonable conditions this morning.
Best
regards,
https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220307/CFs07Mar22.png
¤¤••••• Subject: Recent images
Received:
Hi all,
Here
are a few more recent images.....
NGC
3576 in RGB:
http://www.damianpeach.com/deepsky/ngc3576_2022_01_05dp.jpg
20"CDK with FLI camera. LRGB. 2hrs total.
Globular
cluster NGC 5286:
http://www.damianpeach.com/deepsky/ngc5286_2022_02_28dp.jpg
24"CDK with FLI camera. LRGB. 1.5hrs total.
The
Whirlpool Galaxy:
http://www.damianpeach.com/deepsky/m51_2021_07_03dp.jpg
24"CDK with FLI camera. LRGB. 3.5hrs total.
Narrowband
Tarantula Nebula:
http://www.damianpeach.com/deepsky/ngc2070_2022_01_05dp.jpg
24"CDK with FLI camera. Ha_OIII_SII. 16hrs total.
Best
wishes,
Damian PEACH
(Selsey, WS, the
Web: http://www.damianpeach.com/
¤¤••••• Subject: Mars 4 March 0405UT
RGB IR
Received:
Hi all,
I had
to wait for the clouds to clear in brightening sky this morning for this image
set. Chryse is close to centre with the Indus/Oxia extension quite prominent.
Niliacus Lacus and M Acidalium are at lower centre, with M Erythraeum extending
across the upper hemisphere of the planet. Aurorae Sinus is at centre right and
Best
regards,
https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220304/CFs04Mar22.png

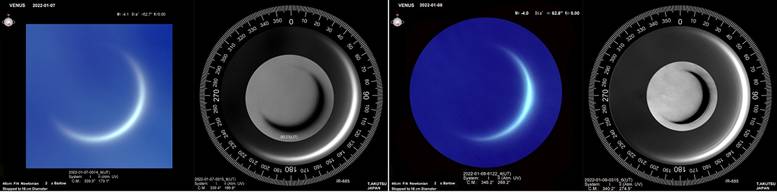

¤¤••••• Subject: Venus images from 3
January to 1 March 2022
Received:
Venus
images in 2022.
3,
7,
22,
Best
regards,
Tomio AKUTSU (

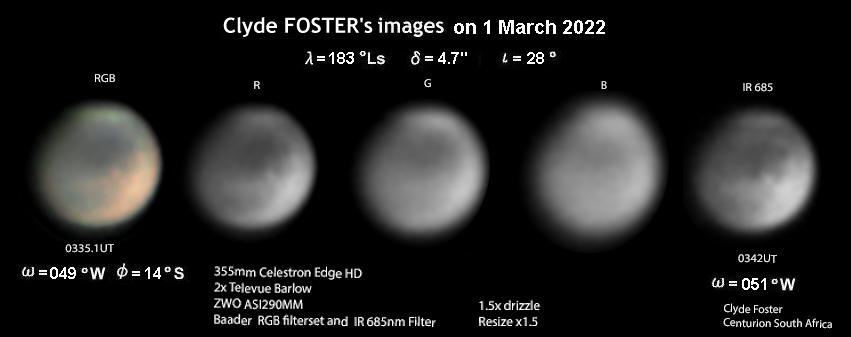

¤¤••••• Subject: Mars 1 March 0335UT
RGB IR
Received:
Hi all,
A poor
quality set from yesterday morning in poor seeing, when a brief gap in clouds only
allowed single captures of R, G, B and IR. Aurorae Sinus is close to centre,
with M Erythraeum extending across most of the upper portion of the planet.
Solis Lacus is at upper right. Anyway, submitting for the record.
Best
regards,
https://www.kwasan.kyoto-u.ac.jp/~cmo/cmons/2022/220301/CFs01Mar22.png
¤¤••••• Subject: The CICLOPS Legacy
Website ... and an Epilogue for
commemoration
Received:
Dear
Friends and Colleagues,
After nearly a quarter of a century, and over 4 years since the end of Cassini,
the official Cassini Imaging Team website ...
http://ciclops.org
... has been recast into its final legacy form and is
retiring. It has been converted from a dynamic site, built, with
every click, one page at a time with information extracted from various
databases, to a static one requiring no on-the-fly computation. What it
looks like today is the way it will look in perpetuity.
This has been a very big task and required my going through the site,
correcting broken links and other mistakes, improving organization, making stylistic
changes, and adding supporting materials. And it required collecting
together a team of volunteers, with skills in php, html, website configuration,
cloud services, and operating systems, to convert and migrate it to the
cloud. The members of the CICLOPS Legacy Team are mentioned
here: http://ciclops.org/webcredits.php.html
(In addition, assistance was freely given to migrate other
software packages that I will be using in the future to write my book.
Yes, there will be a book ... eventually.)
I am very pleased to say that, as a result of a remarkable team effort over the
last 2 months, all done remotely, the site is far better
and faster than it ever was.
To mark this big moment, I have today posted a final Captain's Log,
appropriately called 'Epilogue', in which I remind us all of the intent for the
site when it was first established in 1999, its various components, the highlights
of the Cassini mission, and most importantly for us, the discoveries made by my
imaging team members and I in 20 years of producing the visual record of our
travels to and around Saturn.
It was an extraordinary experience in every way. It is worth remembering.
I hope that, in the future, you visit CICLOPS.org when you wish to recall that
experience and those glorious years traveling Saturn.
Enjoy!
Carolyn Porco (UC
Cassini Imaging Team leader
Visiting Scholar, UC Berkeley, CA
Fellow, California Academy of Sciences
http://carolynporco.com
